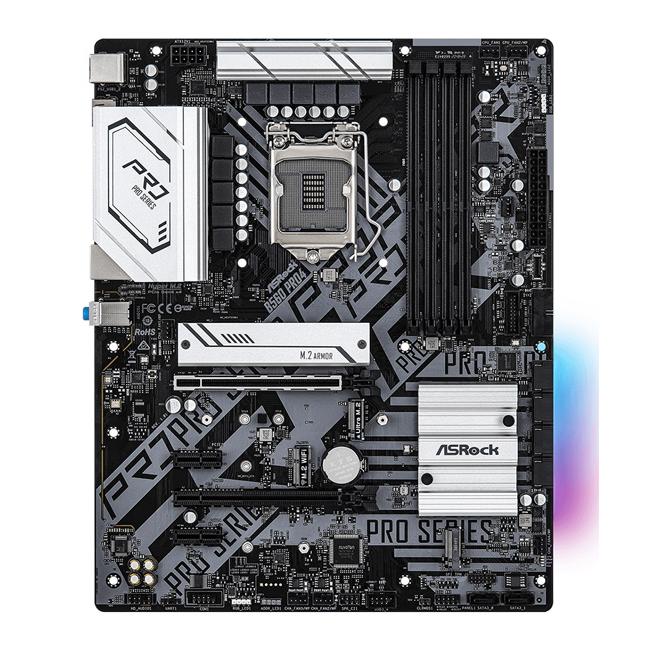

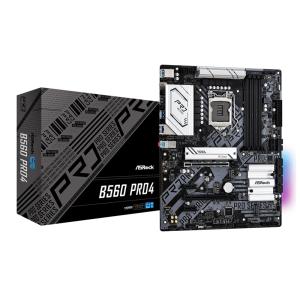

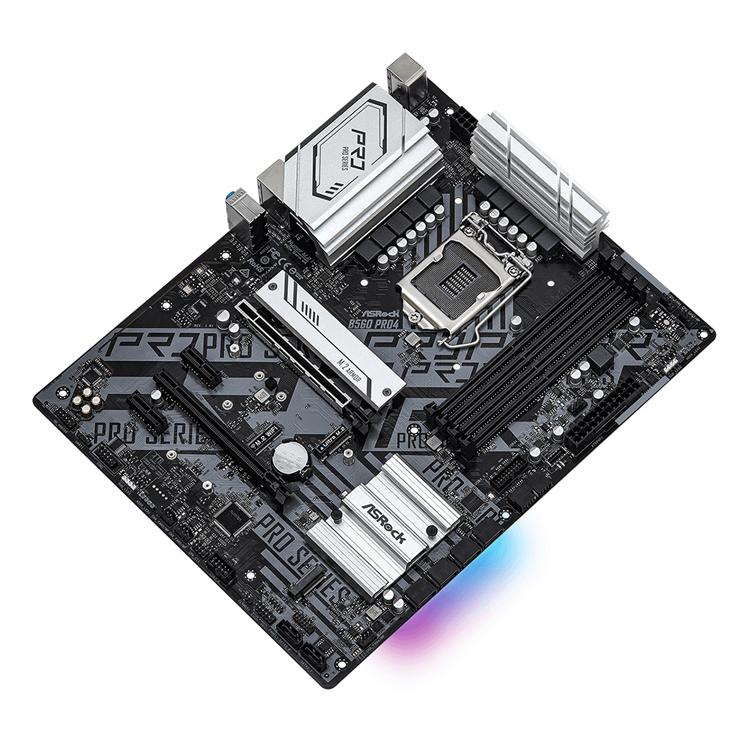

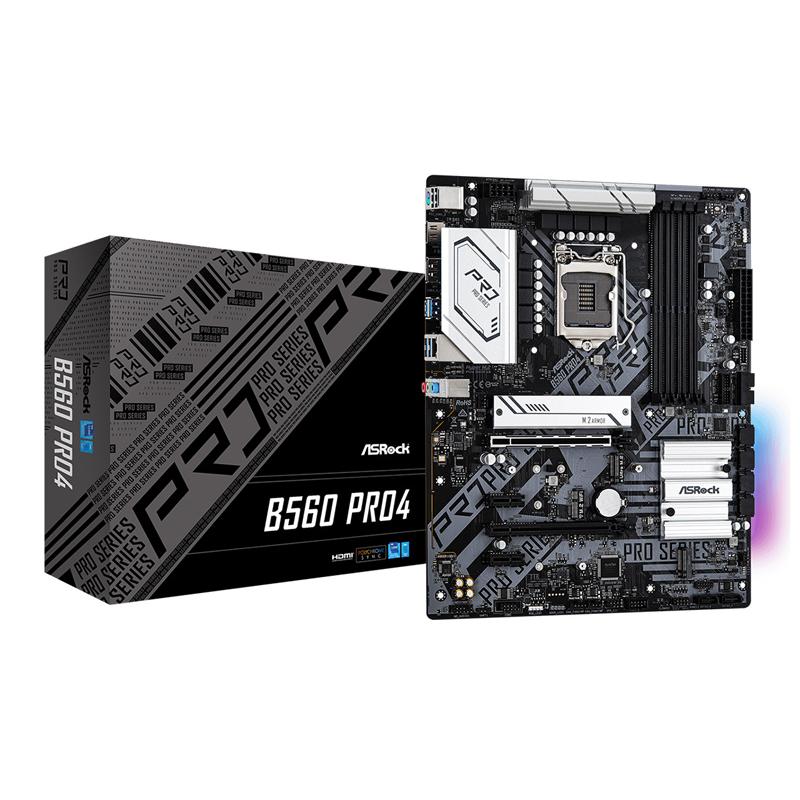

ASROCK μητρική B560-PRO4, 4x DDR4, s1200, USB 3.2 Gen1, ATX

ASROCK μητρική B560-PRO4, 4x DDR4, s1200, USB 3.2 Gen1, ATX

Η B560-PRO4 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset B560 της Intel.
Διαθέτει δυο εξόδους γραφικών: HDMI και DisplayPort.

-Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
-8 Phase Power Design
-Supports DDR4 4800MHz (OC)
-1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
-1x M.2 Key-E for WiFi
-Graphics Output Options: HDMI, DisplayPort
-7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
-6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
-1x Ultra M.2 (PCIe Gen3 x4)
-1x M.2 (PCIe Gen3 x2 & SATA3)
-8x USB 3.2 Gen1 (4 x Rear, 4 x Front)
-4x USB 2.0 (2 x Rear, 2 x Front)
-1x Front USB 3.2 Gen1 Type-C
-Intel® Gigabit LAN

Τεχνικά χαρακτηριστικά
CPU: Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
Chipset: Intel® B560
Memory: Dual Channel DDR4 Memory Technology, 4x DDR4 DIMM Slots
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection, Nahimic Audio
LAN: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel® I219V
Slots: 2x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3), 2x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3), 2x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage: 6x SATA3 6.0 Gb/s Connectors, 1x Hyper M.2 Socket (M2_1), 1x Ultra M.2 Socket (M2_2), 1x M.2 Socket (M2_3)
Graphics: HDMI, DisplayPort 1.4
Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Connector:
1x COM Port Header
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
2x RGB LED Headers
2x Addressable LED Headers
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector (Hi-Density Power Connector)
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

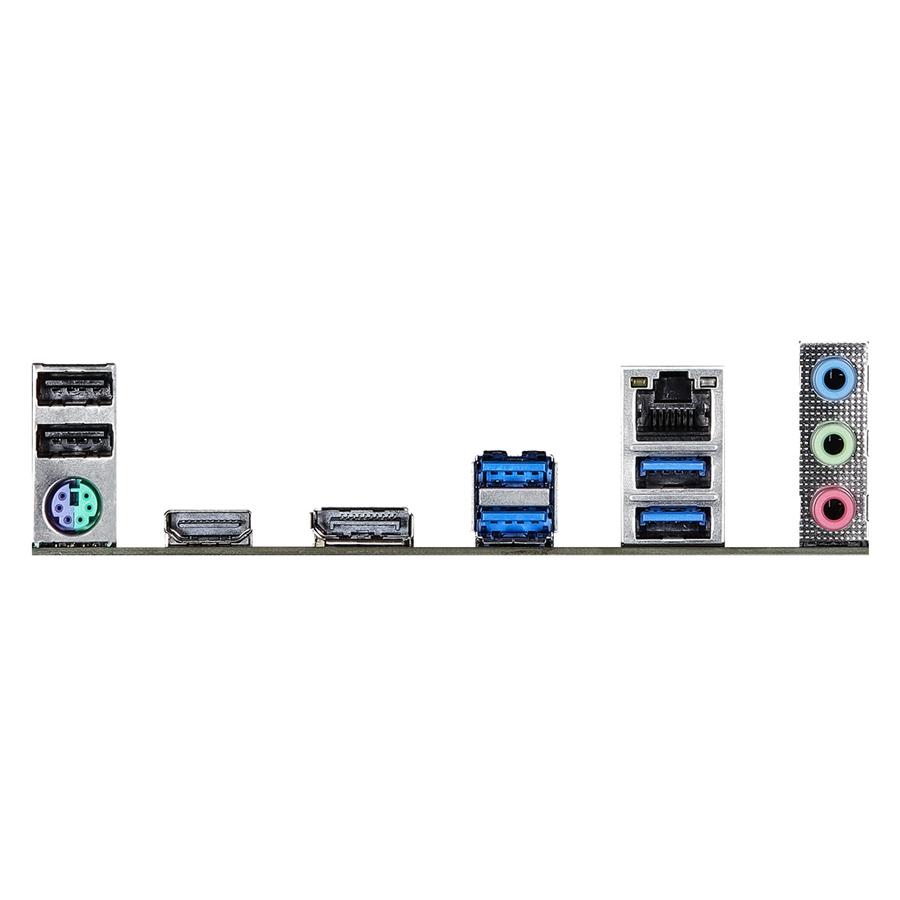

Rear Panel I/O:
3x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
1x DisplayPort 1.4
4x USB 3.2 Gen1 Ports (Supports ESD Protection)
2x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
