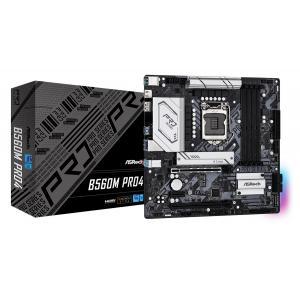

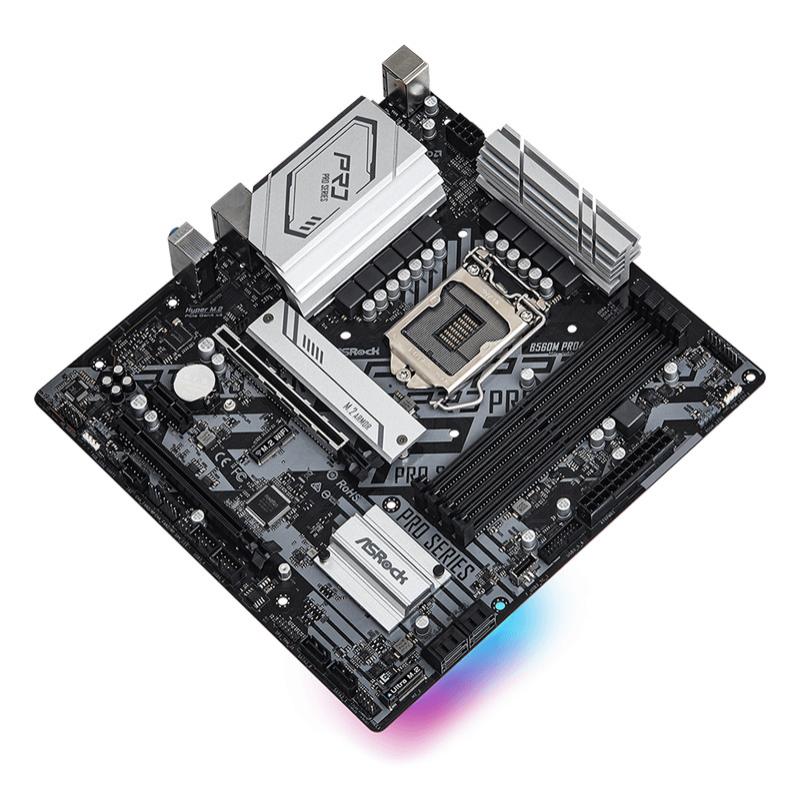

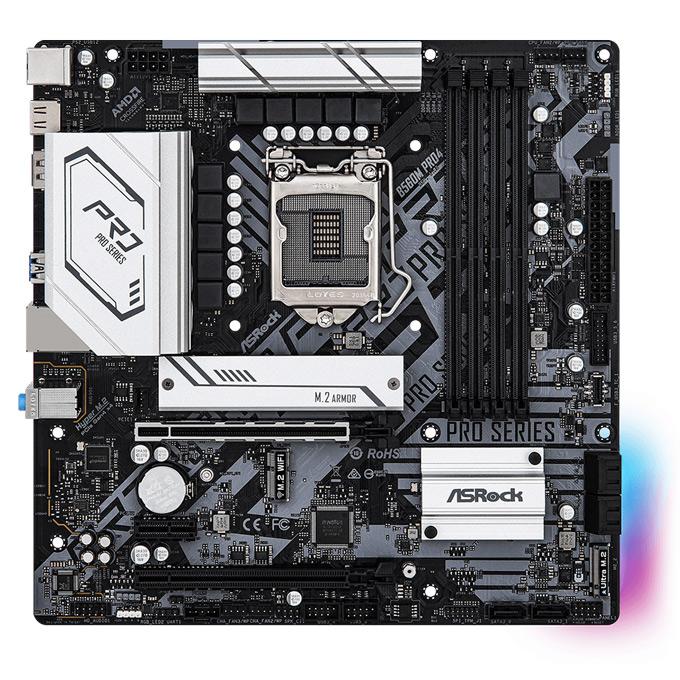

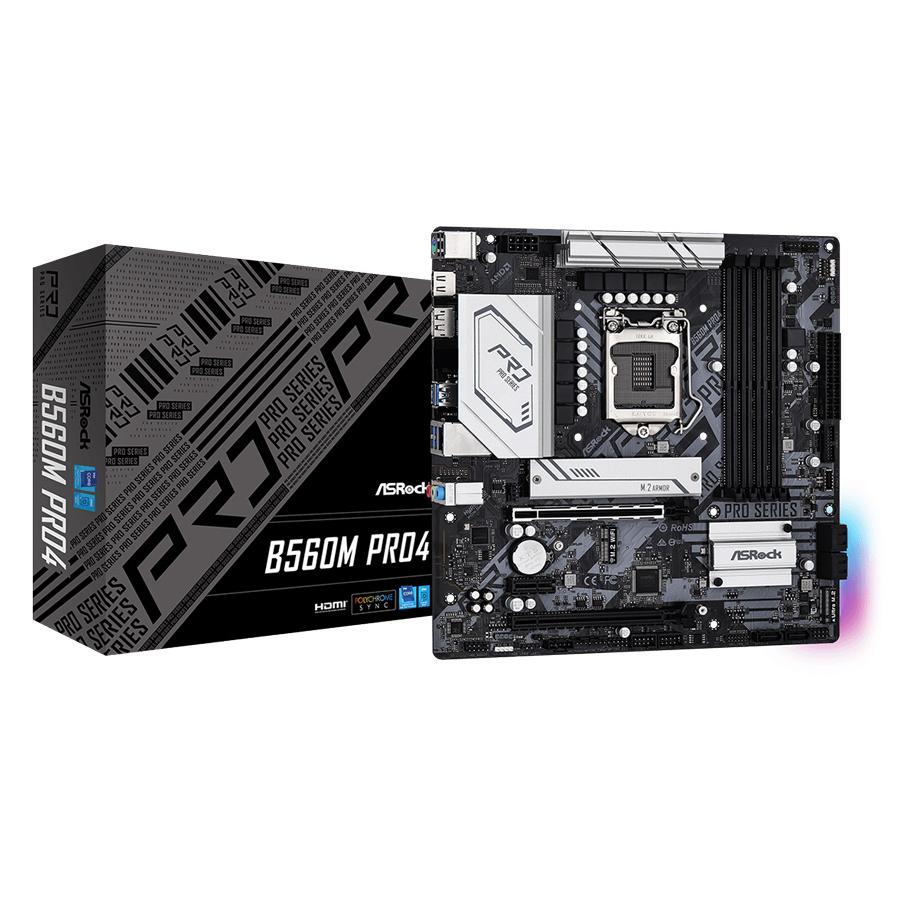

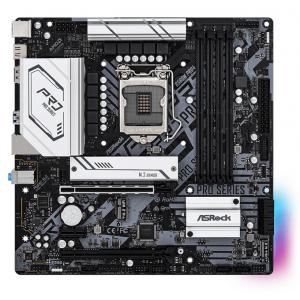

ASROCK μητρική B560M Pro 4, 4x DDR4, s1200, USB 3.2, mATX
Η B560M Pro4 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση σε gaming PC κορυφαίων επιδόσεων!
Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset B560 της Intel.
Διαθέτει δυο εξόδους γραφικών: DisplayPort και HDMI.
-Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
-8 Phase Power Design
-Supports DDR4 4800MHz (OC)
-1x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
-1x M.2 Key-E for WiFi
-Graphics Output Options: HDMI, DisplayPort
-7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
-6x SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
-1x Ultra M.2 (PCIe Gen3 x4 & SATA3)
-7x USB 3.2 Gen1 (4 x Rear, 2 x Front, 1 Front Type-C)
-6x USB 2.0 (2 x Rear, 4 x Front)
-Intel Gigabit LAN
-ASRock Polychrome SYNC
Τεχνικά Χαρακτηριστικά
CPU: Supports 10th Gen Intel Core Processors & 11th Gen Intel Core Processors (LGA1200)
Chipset: Intel B560
Memory: Dual Channel DDR4, 4x DDR4 DIMM Slots
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection
LAN: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel® I219V
Slots: 2x PCI Express x16 Slots, 2x PCI Express x16 Slots, 1x PCI Express 3.0 x1 Slot, 1x M.2 Socket (Key E)
Storage: 6x SATA3 6.0 Gb/s Connectors, 1x Hyper M.2 Socket (M2_1), 1x Ultra M.2 Socket (M2_2)
Graphics: HDMI, DisplayPort 1.4
Form Factor: Micro ATX 24.4 cm x 24.4 cm
Connector
tor
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
2x RGB LED Headers
2x Addressable LED Headers
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector (Hi-Density Power Connector)
1x Front Panel Audio Connector
1x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

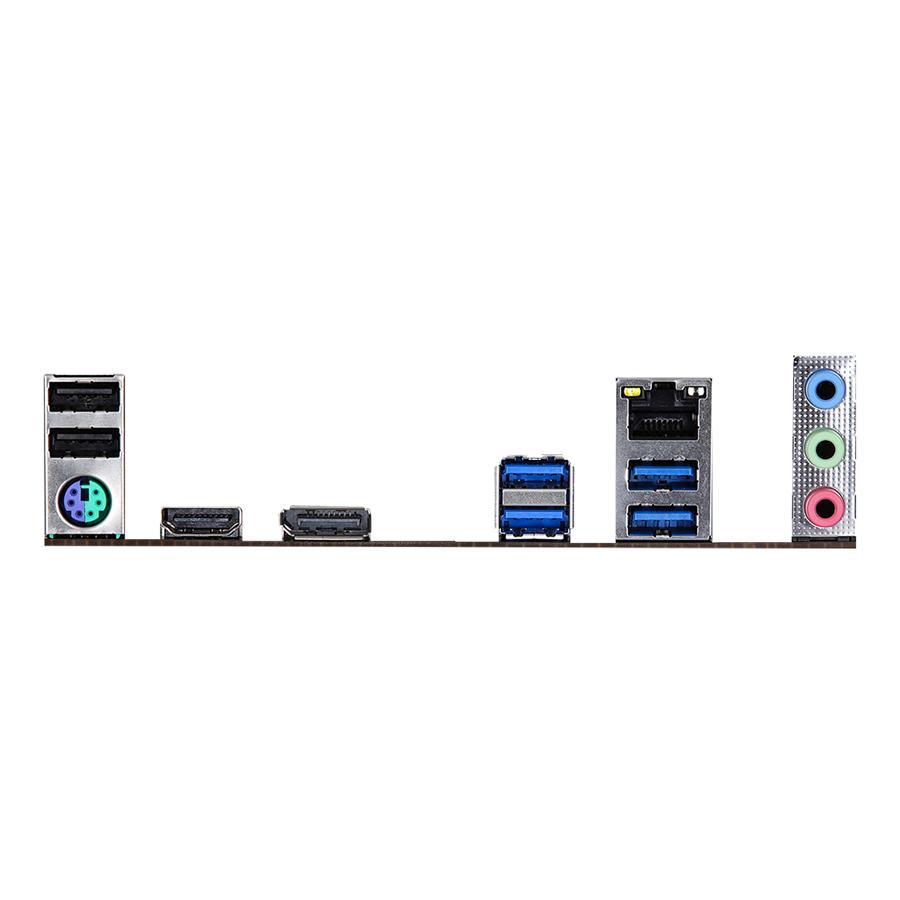

Rear Panel I/O
3x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
1x DisplayPort 1.4
4x USB 3.2 Gen1 Ports (Supports ESD Protection)
2x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
