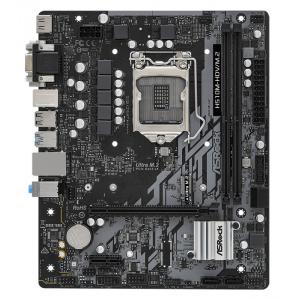

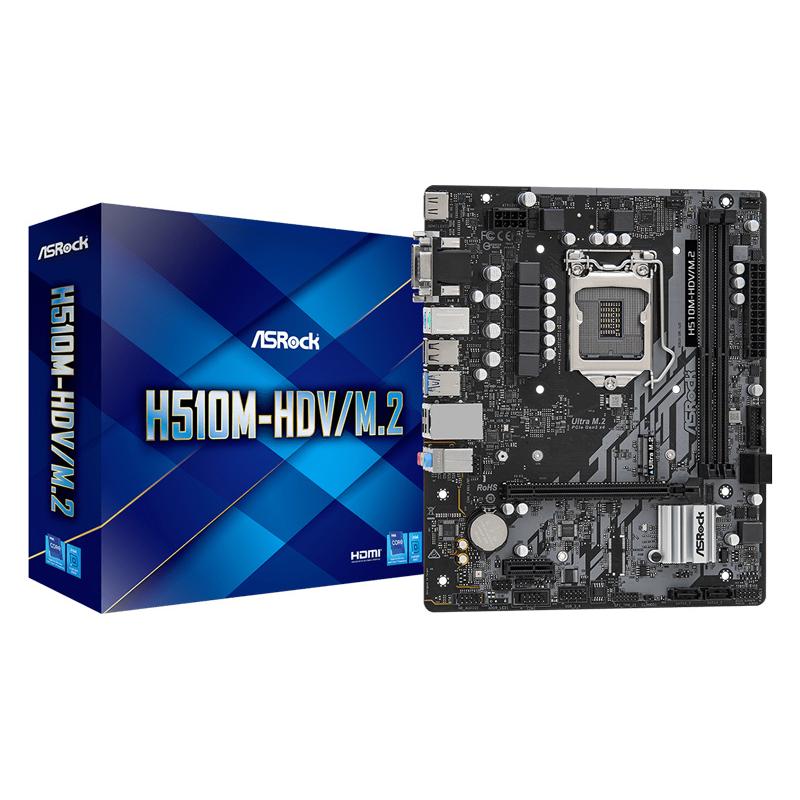

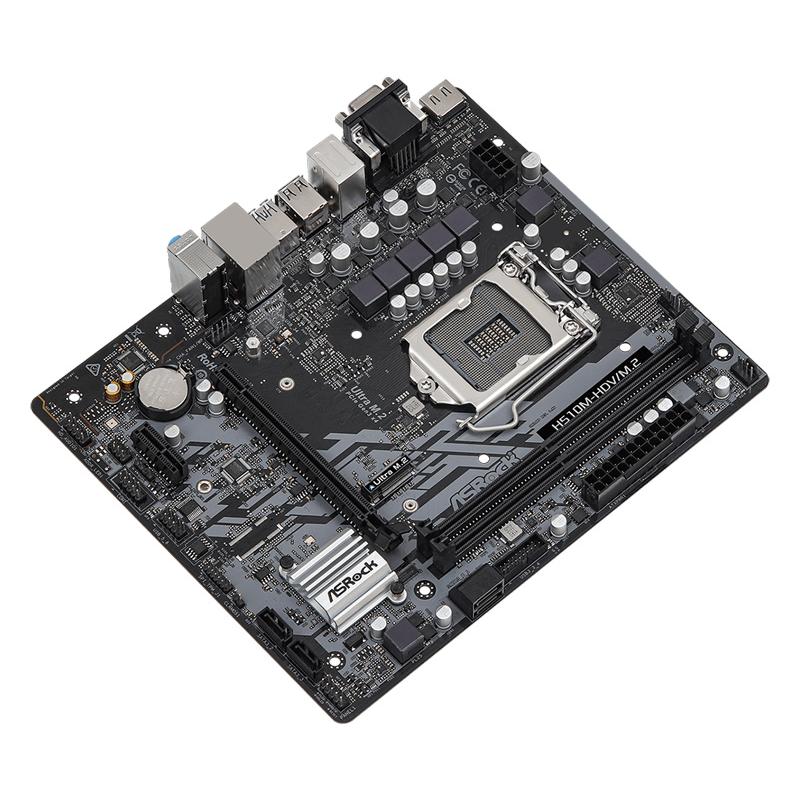

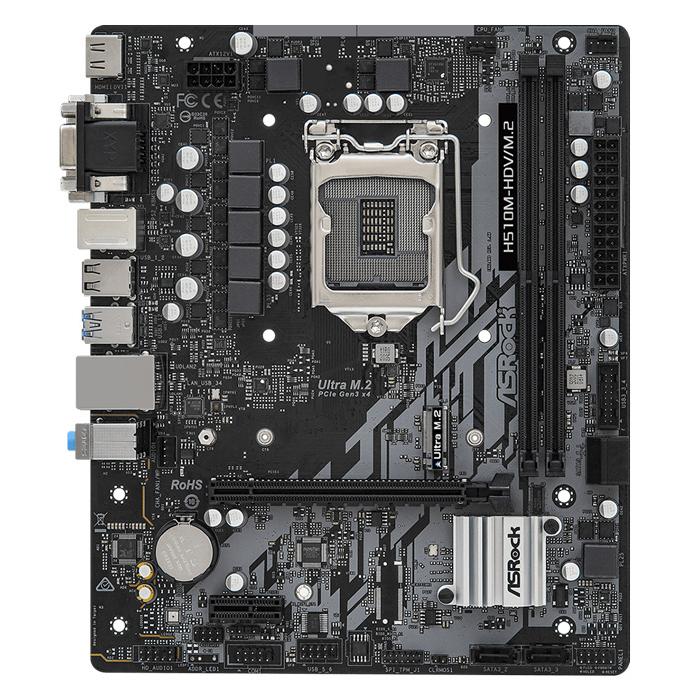

ASROCK μητρική H510M-HDV/M.2, 2x DDR4, s1200, USB 3.2, mATX
Η H510M-HDV/M.2 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset H510 της Intel.
Διαθέτει τρεις εξόδους γραφικών: D-Sub Port, DVI-D Port και HDMI.
-Supports 10th Gen Intel Core™ Processors and 11th Gen Intel Core Processors
-Supports DDR4 3200MHz (OC)
-1x PCIe 4.0 x16, 1 x PCIe 3.0 x1
-Graphics Output Options: HDMI, DVI-D, D-Sub
-7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
-4x USB 3.2 Gen1 (2 x Rear, 2 x Front)
-6x USB 2.0 (4 x Rear, 2 x Front)
-Intel® Gigabit LAN
Τεχνικά Χαρακτηριστικά
CPU: Supports 10th Gen Intel Core Processors & 11th Gen Intel Core Processors (LGA1200)
Chipset: Intel H510
Memory: Dual Channel DDR4, 2x DDR4 DIMM Slots
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel® I219V
Slots: PCI Express 4.0 x16 Slot, PCI Express 3.0 x16 Slot, PCI Express 3.0 x1 Slot
Storage: 4x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug, 1x Ultra M.2 Socket (M2_1)
Graphics: D-Sub, DVI-D and HDMI
Form Factor: Micro ATX 22.6 cm x 18.8 cm
Connector
1x COM Port Header
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)*
1x Chassis Fan Connector (4-pin)**
1x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

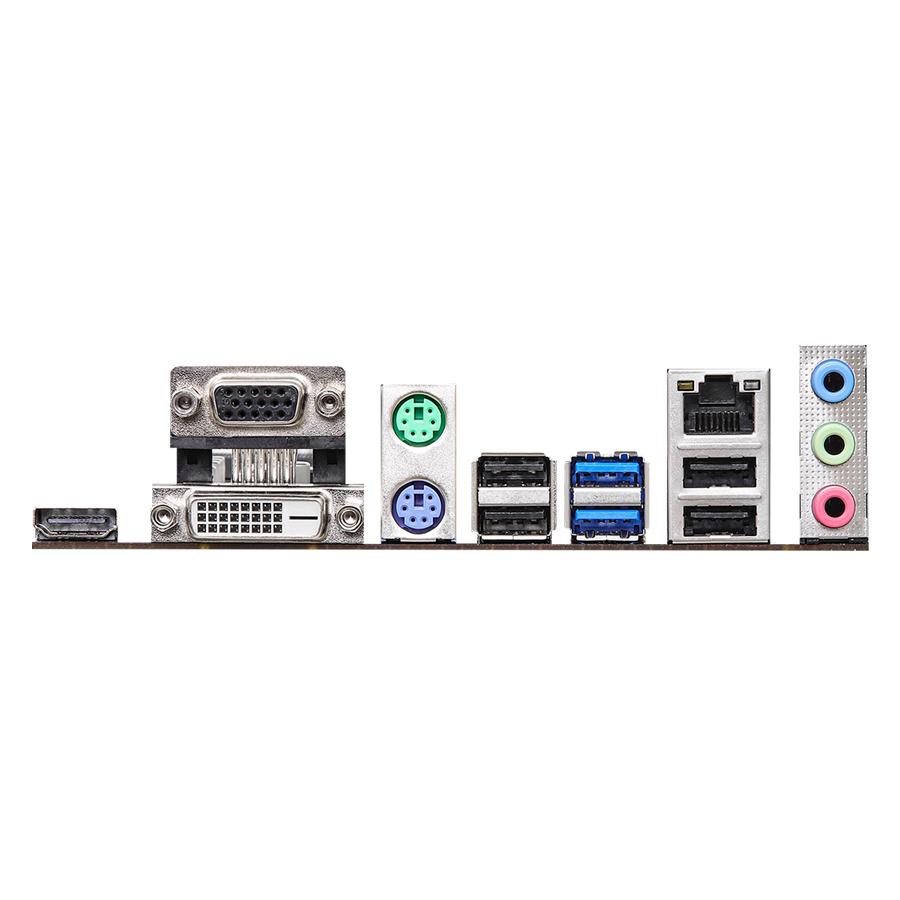

Rear Panel I/O
1x PS/2 Keyboard Port
1x PS/2 Mouse Port
1x D-Sub Port
1x DVI-D Port
1x HDMI Port
4x USB 2.0 Ports (Supports ESD Protection)
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
