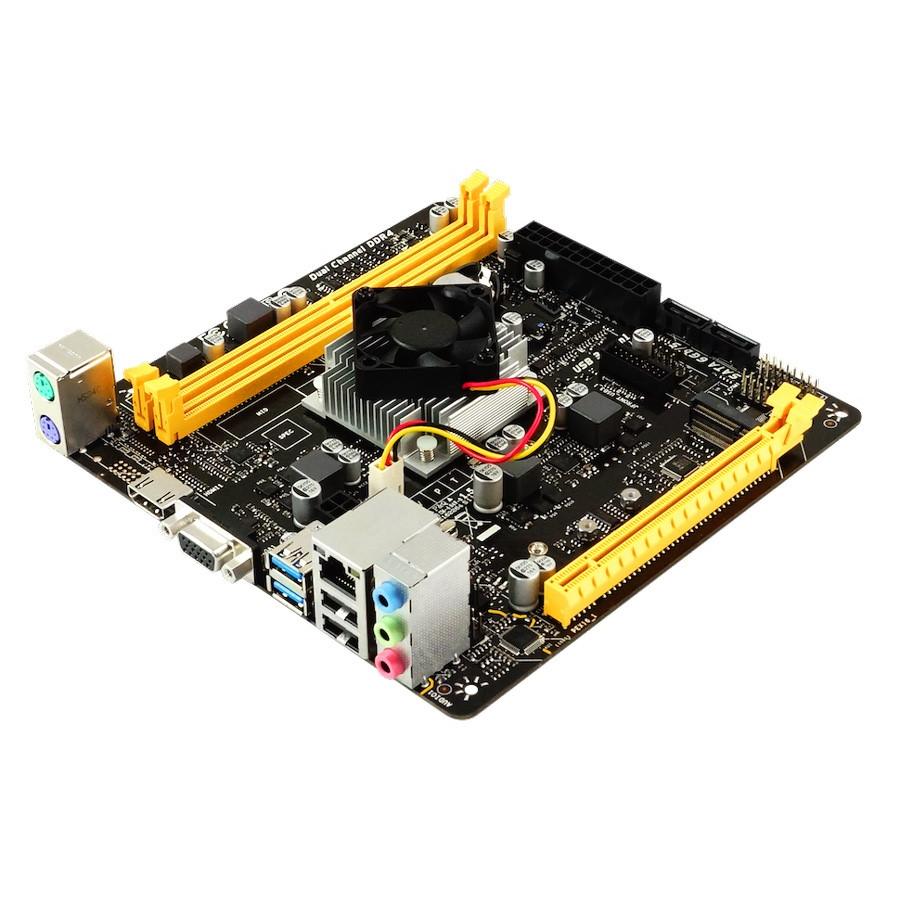

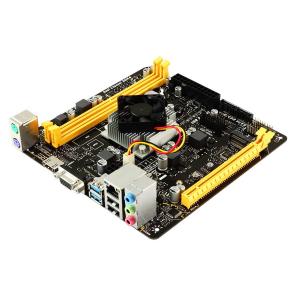

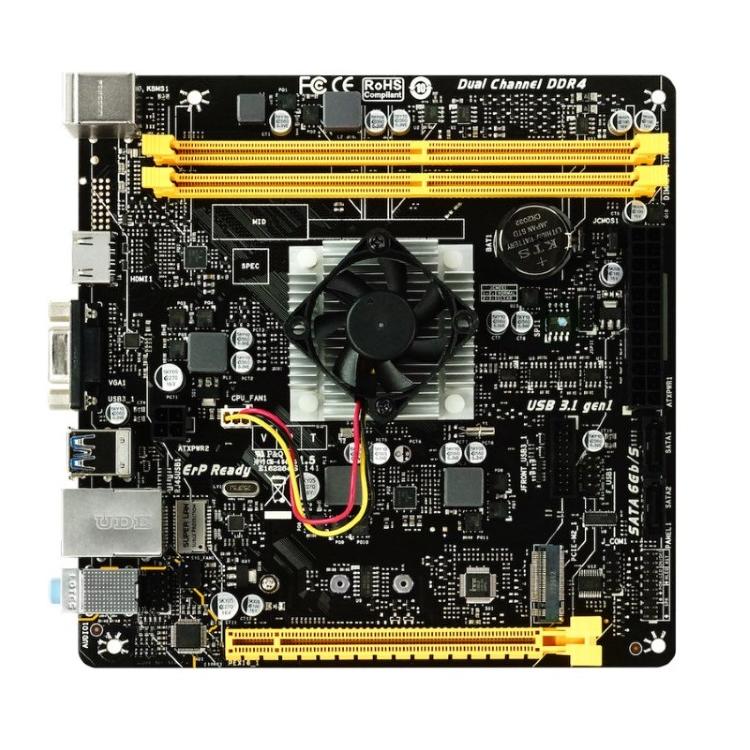

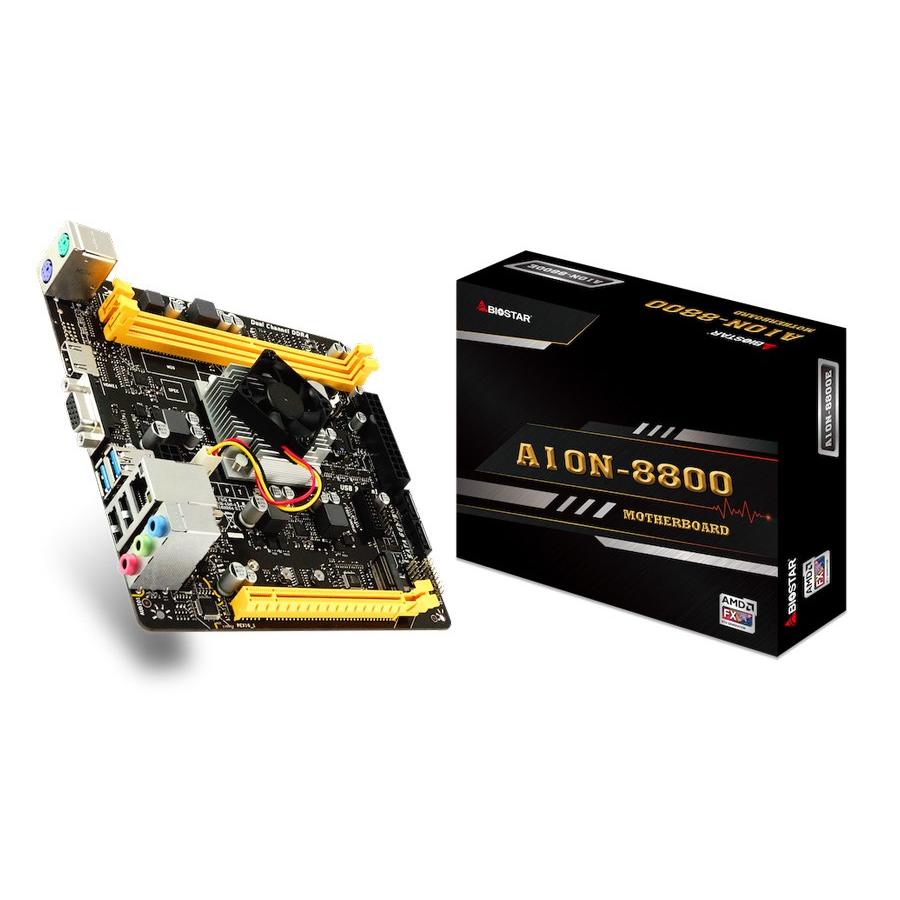

BIOSTAR Μητρική A10N-8800E και CPU FX-8800P, 2x DDR4, USB 3.1, Ver. 6.0

BIOSTAR Μητρική A10N-8800E και CPU FX-8800P, 2x DDR4, USB 3.1, Ver. 6.0

-AMD FX-8800P Processor
-Supports 2 DIMM of DDR4 2133MHz(OC) up to 32G maximum capacity
-Supports AMD Radeon™ R7 Graphics
-Supports M.2 Key M 16Gb/s Connector
-Supports USB 3.1 Gen1 Port

Τεχνικά Χαρακτηριστικά
Chipset: AMD Carrizo
CPU Support: AMD FX-8800P Processor (Quad core 2.1GHz up to 3.4GHz)
Memory: 2x DDR4, Support Dual Channel DDR4 2133(OC) MHz
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR4 module
Integrated video: AMD Radeon™ R7 Graphics, HDCP
Storage: 2x SATA3 Connector (6Gb/s), 1x M.2 Key M 16Gb/s Connector: Supports PCI-E & SATA SSD
LAN: Realtek RTL8111H – 10/100/1000Mb/s Controller
Codec: Realtek ALC887 8-Channel HD Audio
USB: 4x USB 3.1 Gen1 Port(2 on rear I/Os and 2 via internal headers), 4x USB 2.0 Port(2 on rear I/Os and 2 via internal headers)
Expansion slot: 1x PCI-E 3.0 x16 Slot
Rear I/O:
1x PS/2 Mouse
1x PS/2 Keyboard
2x USB 3.1 Gen1 Port
2x USB 2.0 Port
1x HDMI Connector ,resolution up to 4096 x 2160 @24Hz, compliant with HDMI 1.4
1x VGA Port ,resolution up to 1920 x 1200 @60Hz
1x LAN port
3x Audio Jacks
Internal I/O:
1x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2x SATA3 6Gb/s Connector
1x Front Audio Header
1x Front Panel Header
1x CPU Fan Connector
1x System Fan Connector
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x Clear CMOS Header
1x COM Port Header
Dimension: Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )
OS Support: Windows 7 x86/x64, Windows 8.1 x64, Windows 10 x64
Accessories:
2x SATA Cable
1x I/O Shield
1x DVD Driver
1x Quick Guide
