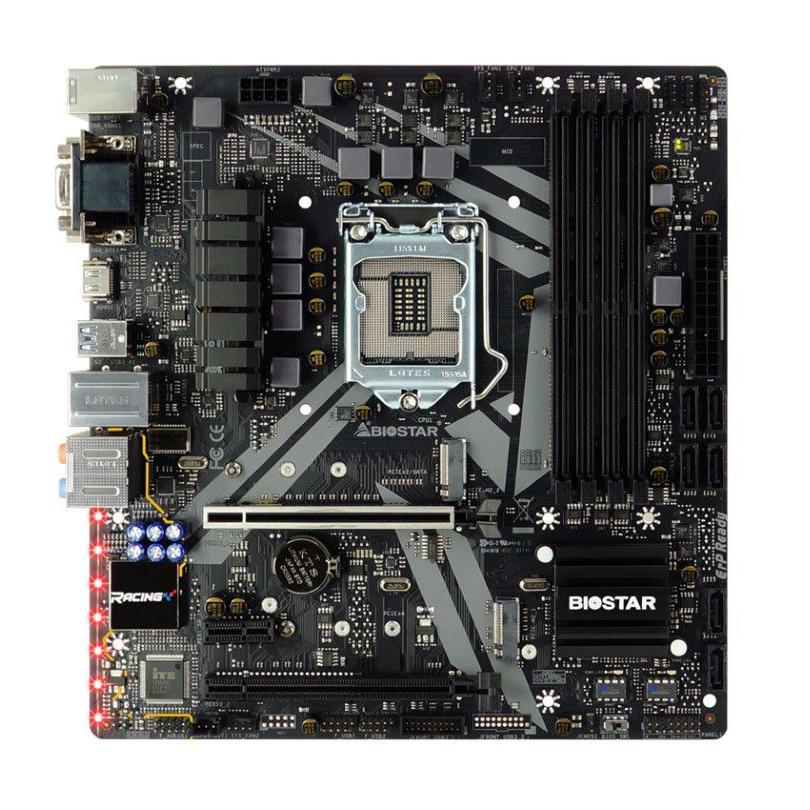

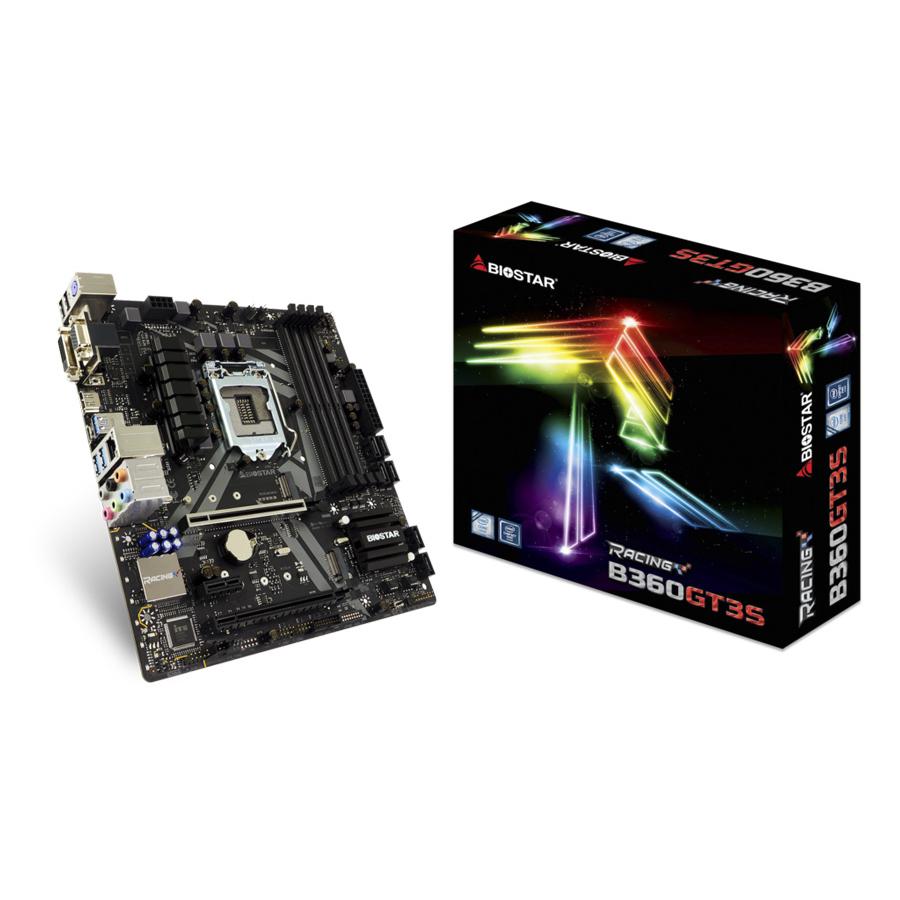

BIOSTAR Μητρική B360GT3S, 4x DDR4, s1151, USB 3.1, HDMI, mATX, Ver. 6.0
-Supports 9th & 8th Generation Intel® Core™ Processor
-Intel B360 single chip architecture
-Support 4-DIMM DDR4-2666/2400/2133/1866 up to 64G maximum capacity
-Support USB 3.1
-Support HDMI 4K resolution
-Support M.2(32Gb/s)(Intel® Optane™ Technology Ready)
Τεχνικά χαρακτηριστικά
Chipset: Intel B360
CPU Support:
9th Gen Intel® Core™ i9, i7, i5, i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 i5, i3, Pentium, Celeron LGA 1151 Processor
Memory: 4x DDR4, Dual Channel DDR4 2666/2400/2133/1866 MHz
Integrated video: By CPU model, Supports DX12, HDCP
Storage: 6x SATA3, 1x M.2 Key M 32Gb/s, 1 x M.2 Key M 16Gb/s
LAN: Intel i219V – Gigabit Ethernet PHY
Codec: Realtek ALC1150-Channel Audio, Support Blu-ray Audio, Biostar Hi-Fi
USB
1x USB 3.1 Gen2 Type-C Port
1x USB 3.1 Gen2 Type-A Port
2x USB 3.1 Gen1 Port
1x USB 3.1 Gen1 Header
2x USB 2.0 Port
2x USB 2.0 Header
EXPANSION SLOT
2x PCI-E 3.0 x16 Slot(x16 + x4)
1x PCI-E 3.0 x1 Slot

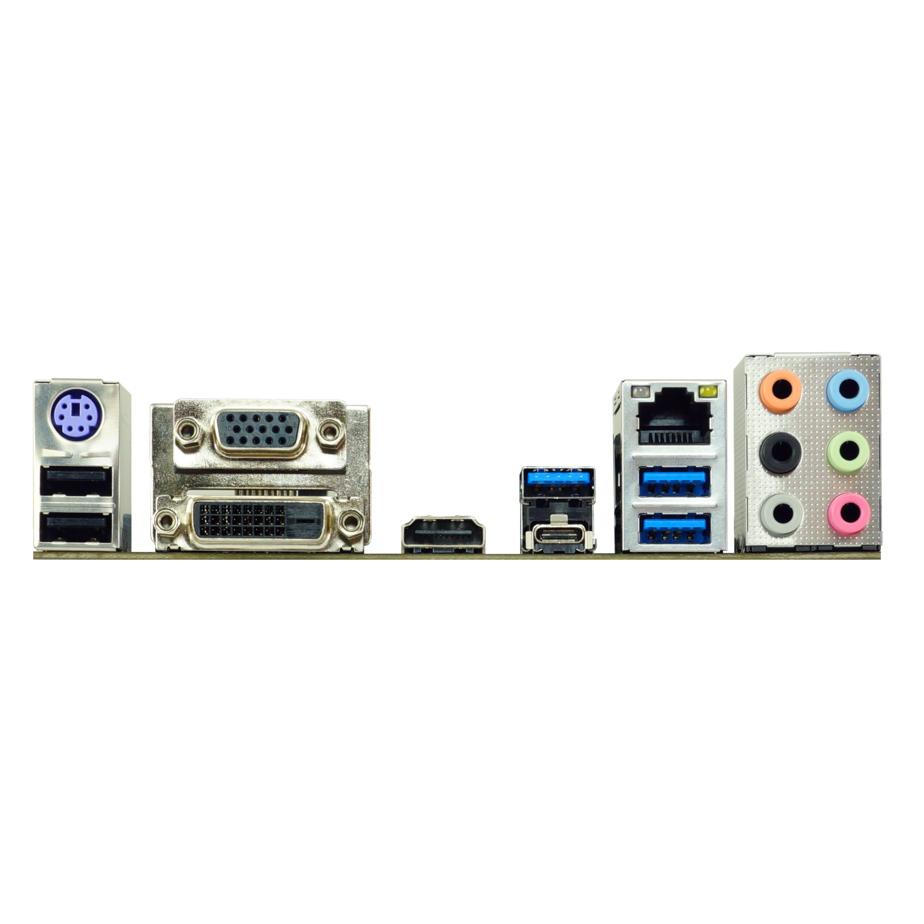

REAR I/O
1x PS/2 Keyboard/Mouse
1x USB 3.1 Gen2 Type-C Port
1x USB 3.1 Gen2 Type-A Port
2x USB 3.1 Gen1 Port
2x USB 2.0 Port
1x HDMI Connector, resoltuion up to 4096*2160 @ 24Hz, compliant with HDMI 1.4
1x DVI-D Connector, resolution up to 1920*1200@60Hz
1x VGA Port, resolution up to 1920*1600@60Hz
1x LAN port
6x Audio Jacks
INTERNAL I/O
1x USB 3.1 Gen1 Header
1x USB 2.0 Header
1x M.2 Key M 32Gb/s Connector
1x M.2 Key M 16Gb/s Connector
1x CPU Fan Connector
2x System Fan Connector
2x 5050 LED Header
Dimension: Micro ATX
