BIOSTAR Μητρική B450GT3, 4x DDR4, AM4, USB 3.1, mATX, HDMI, Ver. 6.0
-Support AMD Ryzen CPU / APU
-AMD B450 single chip architecture
-Support 4-DIMM DDR4-1866/2133/2400/2666/2933/3200(OC) up to 64G maximum capacity
-Realtek Gigabit LAN
-Support USB 3.1 Gen2
-Support M.2(32Gb/s)
-Support HDMI, DVI-D Ports
Τεχνικά Χαρακτηριστικά
Chipset: AMD B450
CPU Support: AMD A-series APU / Ryzen CPU / NPU for Socket AM4
MEMORY: Support Dual Channel DDR4 1866/2133/2400/2666/2933/3200(OC) MHz, (Max. Supports up to 64GB Memory, Each DIMM supports non-ECC 8/16 GB DDR4 module)
Integrated video: By CPU model Supports DX12, HDCP
STORAGE: 6x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10, 1x M.2 Key M 32Gb/s Connector: Support PCI-E & SATA SSD
LAN: Realtek RTL8118AS – 10/100/1000Mb/s Controller
CODEC: Realtek ALC1150 7.1-Channel Audio, Support HD Audio, SPDIF_out
USB: 1x USB 3.1 Gen2 Type-C Port(10Gb/s) (1 on rear I/O)
1x USB 3.1 Gen2 Type-A Port(10Gb/s) (1 on rear I/O)
4x USB 3.1 Gen1 Ports (5Gb/s) (2 on rear I/Os and 2 via internal headers)
6x USB 2.0 Ports (2 on rear I/Os and 4 via internal headers)
Expansio slot: 1x PCI-E 3.0 x16 Slot, 1x PCI-E 2.0 x16 Slot(x4), 2x PCI-E 2.0 x1 Slots

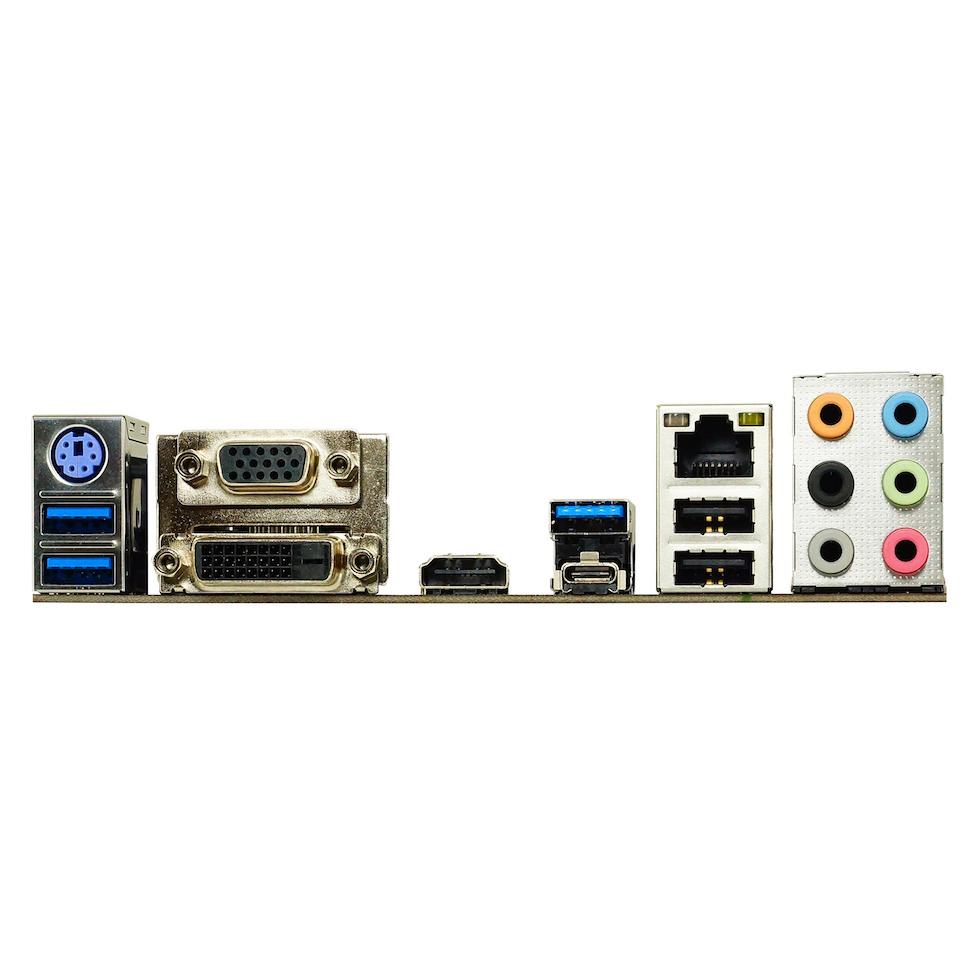

REAR I/O:
1x PS/2 Keyboard/Mouse
1x USB 3.1 Gen2 (10Gb/s) Type-C Port
1x USB 3.1 Gen2 (10Gb/s) Type-A Port
2x USB 3.1 Gen1 (5Gb/s) Ports
2x USB 2.0 Ports
1x HDMI Connector ,resolution up to 4096 x 2160@30Hz
1x DVI-D Connector ,resolution up to 1920 x 1200 @60Hz
1x VGA Port ,resolution up to 1920 x 1200 @60Hz
1x LAN Port
6x Audio Jacks
INTERNAL I/O:
1x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports)
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
6x SATA III 6Gb/s Connector
1x Front Audio Header
1x Front Panel Header
1x S/PDIF-Out Header
1x CPU Fan Connector
2x System Fan Connector
2x 5050 LED Header
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x Clear CMOS Header
1x COM Port Header
H/W Monitoring: CPU / System Temperature Monitoring, System Fan Monitoring, Smart / Manual CPU Fan Control
Dimension: Micro ATX Form Factor Dimension: 24.4cm x 24.4cm
OS SUPPORT: Windows 10(64bit) Windows 7(64bit) for Bristol Ridge/ Summit Ridge/ Pinnacle Ridge only
