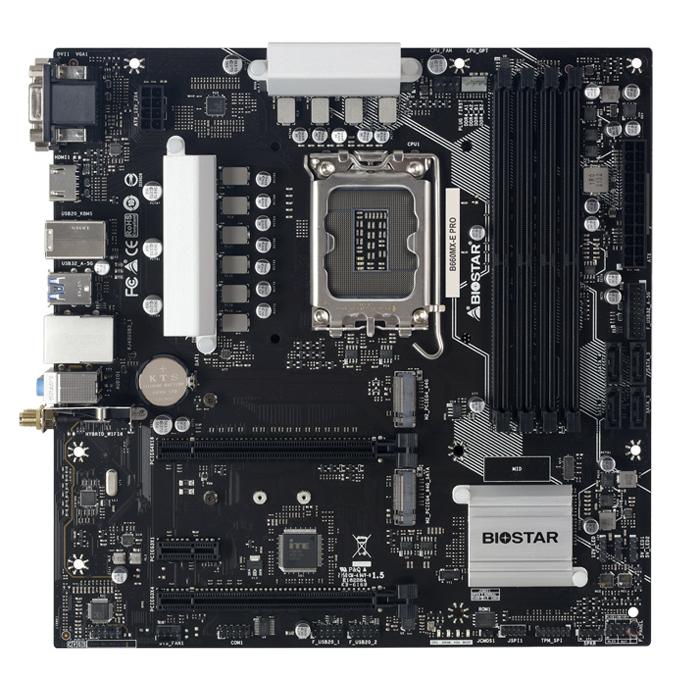

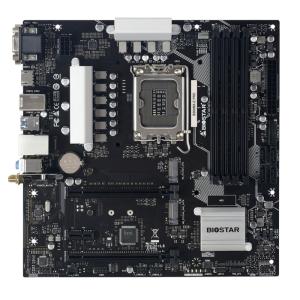

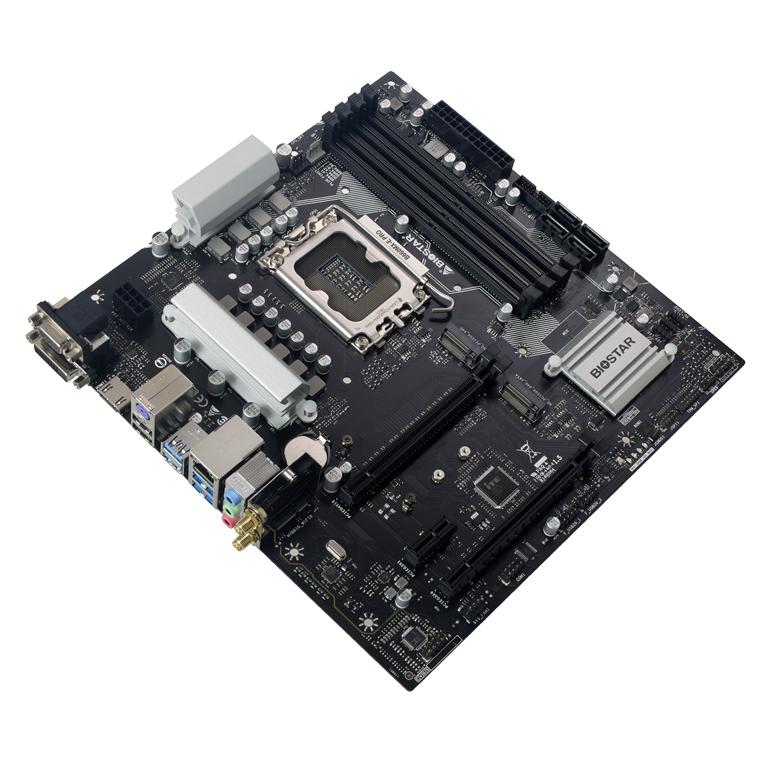

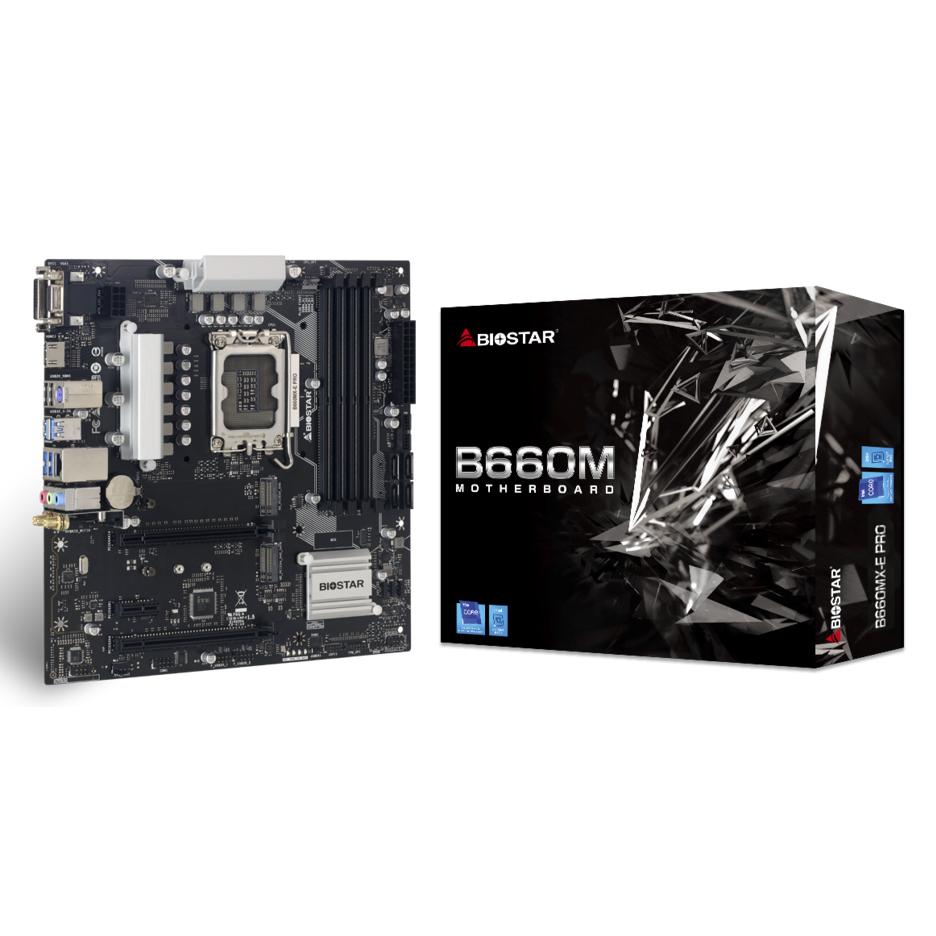

BIOSTAR μητρική B660MX-E PRO, 4x DDR4, s1700, USB 3.2, uATX, GbE, Ver. 6.0
Η B660MX-E PRO της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset B660 της Intel.
Διαθέτει 3 εξόδους γραφικών: VGA, DVI και HDMI.
-Supports 12th/ 13th Generation Intel Core™ Processor
-Intel B660 single chip architecture
-Supports 4-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) up to 128 GB Memory
-Supports PCIe 4.0
-Supports PCIe M.2 4.0 (64Gb/s)
-Supports HDMI 4K2K
-Supports USB 3.2 Gen1
-Support WiFi 6 & 6E module (No WiFi card included)
Τεχνικά Χαρακτηριστικά
Chipset: Intel B660
CPU Support: 12th/13th Generation Intel Core™ i9/i7/i5/i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Memory: 4x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory, Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Integrated video: DX12, HDCP
Storage: 2x M.2 socket, 4x SATA III
LAN: Intel I219V, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio codec: ALC897, 7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB: 6x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers), 6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
Expansion slot: 1x PCIe 4.0 x16 Slot (x16 mode), 1x PCIe 3.0 x16 Slot (x4 mode), 1x PCIe 3.0 x1 Slot
Dimension: Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
OS Support: Supports Windows 10 (64bit) / 11(64bit)
H/W Monitoring: CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, CPU/DDR Voltage Monitoring

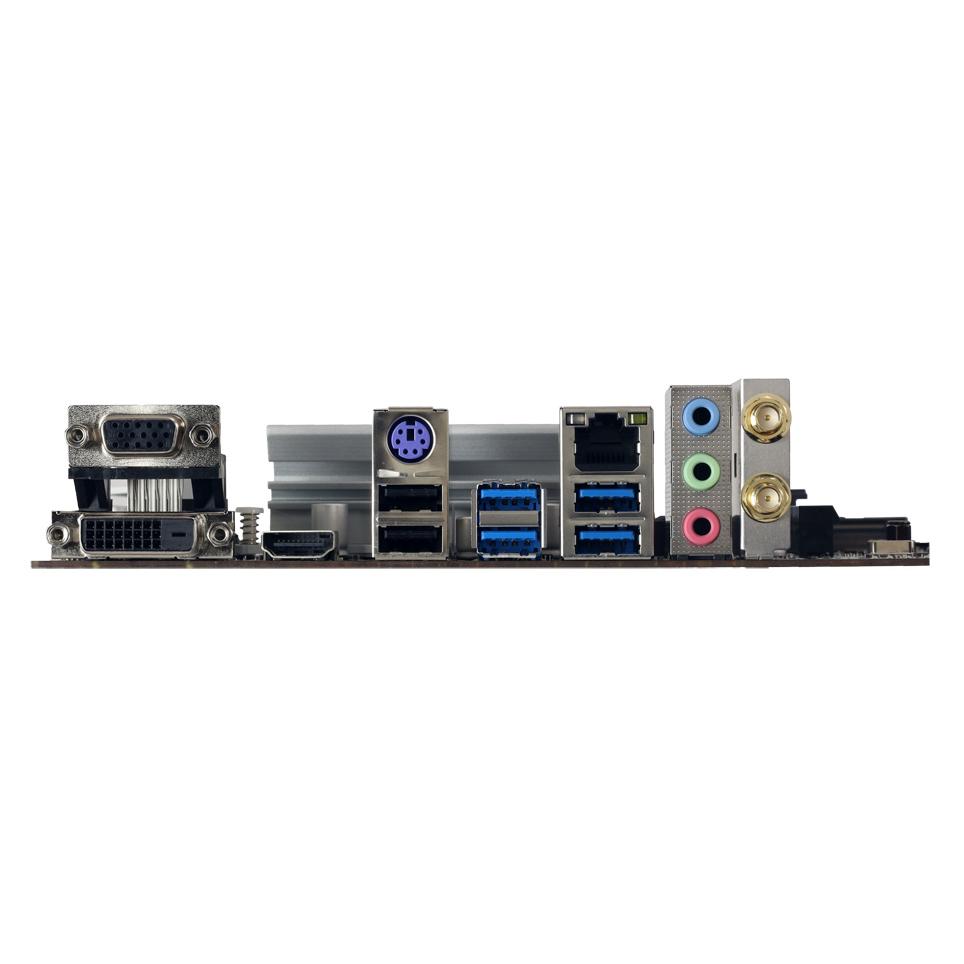

REAR I/O:
2x WIFI Antenna Port
1x PS/2 Keyboard/ Mouse Port
1x HDMI
1x VGA+DVI Port
4x USB 3.2 (Gen1) port
2x USB 2.0 port
1x LAN port
3x Audio Jack
INTERNAL I/O:
4x SATA III Connector (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x CPU water cooling connector (CPU_OPT)
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x SPI TPM Header
2x LED Header (5V)
1x LED Header (12V)
