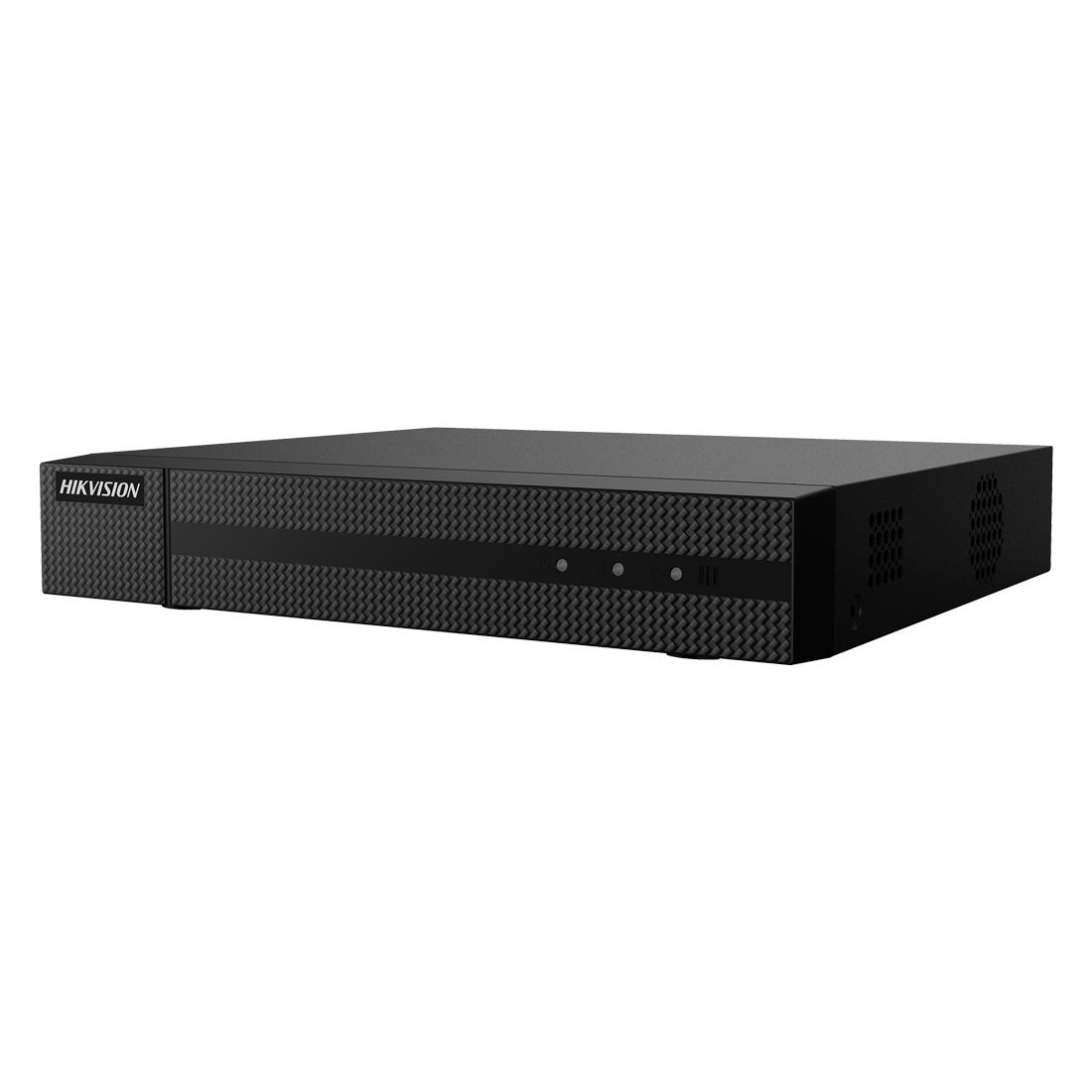

HIKVISION NVR καταγραφικό HiWatch HWN-4216MH-16P, H.265+, 16 κανάλια PoE

HIKVISION NVR καταγραφικό HiWatch HWN-4216MH-16P, H.265+, 16 κανάλια PoE

Καταγραφικό NVR της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 16 κανάλια PoE δικτυακών IP καμερών με ανάλυση εγγραφής έως 8MP και κωδικοποίηση βίντεο H.265+. Επιπλέον υποστηρίζει HDD έως 8ΤΒ.

-Up to 16-ch IP camera inputs
-H.265+/H.265/H.264+/H.264 video formats
-Up to 1-ch at 8 MP/5-ch at 1080p decoding capacity
-Up to 160 Mbps incoming bandwidth
-Recording at up to 8 MP resolution
-Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
-HDMI and VGA simultaneous outputs
-HDMI Video output at up to 4K (3840 x 2160) resolution
-2 SATA interfaces connectable for recording and backup
-1 self-adaptive 10/100/1000 Mbps network interface
-Hik-Connect for easy network management
-Live view from smart device or Internet
-16 independent PoE network interfaces

Τεχνικά χαρακτηριστικά
IP video input: 16-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 80 Mbps
Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI output resolution: 1-ch, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA output resolution: 1-ch, 1920x1080p/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio output: 1-ch, RCA (Linear, 1kΩ)
Decoding format: H.265/H.265+/H.264/H.264+/MPEG4
Live view/Playback resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 16-ch
Decoding Capability: 1-ch @8MP (30 fps)/5-ch@1080p (30 fps)
Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
SATA: 2 SATA interface for 2 HDD
Hard Disk Capacity: Up to 8TB for each disk
Network interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface: 2x USB 2.0
Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: Up to 150W
POE Supported standard: IEEE 802.3 af/at
Power supply: 100 to 240 VAC
Power: 280W
Consumption (without hard disk and PoE): Up to 15 W
Working temperature: -10°C to +55°C
Working humidity: 10 % to 90 %
Chassis: 1U Chassis
Dimensions (WxDxH): 385 x 315 x 52 mm

Περιεχόμενα συσκευασίας
NVR καταγραφικό
Ενσύρματο ποντίκι
Τροφοδοτικό
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
