KEYESTUDIO advanced study kit KS0075, για Arduino
Advanced study kit με UNO R3 της Keyestudio για Arduino. Το kit θα σας βοηθήσει να μάθετε τα βασικά στοιχειά της χρήσης του Arduino μέσω της ολοκλήρωσης πολλών δημιουργικών projects.
Kit projects
Project 1: Hello World
Project 2: LED blinking
Project 3: PWM
Project 4: Traffic light
Project 5: LED chasing effect
Project 6: Button-controlled LED
Project 7: Active buzzer
Project 8: Passive Buzzer
Project 9: RGB LED
Project 10: Photo resistor
Project 11: Flame Sensor
Project 12: LM35 temperature sensor
Project 13: Tilt switch
Project 14: IR remote control
Project 15: Analog value reading
Project 16: 74HC595
Project 17: 1-digit LED segment display
Project 18: 4-digit LED segment display
Project 19: 8*8 LED matrix
Project 20: 1602 LCD
Project 21: 9g servo control
Project 22: 5V Stepper Motor
Project 23: PIR Motion Sensor
Project 24: Analog Gas Sensor
Project 25: ADXL345 Three Axis Acceleration Module
Project 26: HC-SR04 Ultrasonic Sensor
Project 27: Joystick Module
Οδηγίες χρήσης:
https://www.data-media.gr/files/KS0074.pdf
Τεχνικά Χαρακτηριστικά
Microcontroller core: AVRmega328P-PU (Processing speed 20MIPS)
Working voltage: +5V
External input voltage:+7V~+12V(suggest)
External input voltage (extremum): +6V? Vin ? +20V
Digital signal I/O interface: 14 (6 PWM input interface)
Analog signal input interface: 6
DC I/O interface current: 40mA
Flash capacity: 32KB(other 2k used in hootloader)
SRAM static storage capacity
EEPROM storage capacity: 512bytes
Clock frequency: 16MHZ

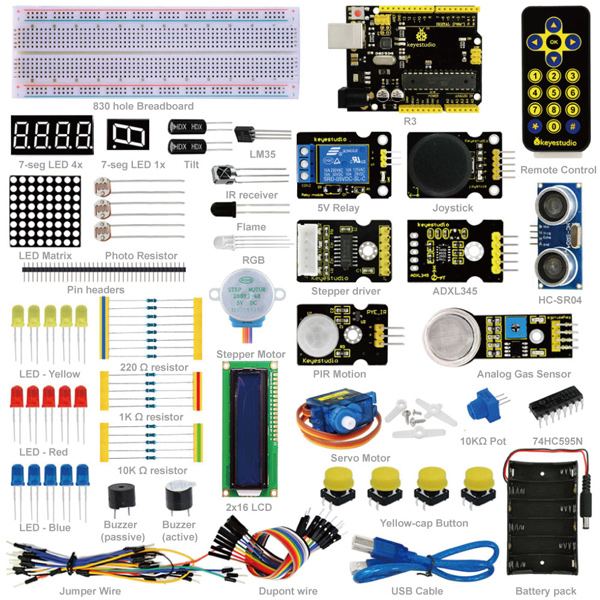

Περιεχόμενα Συσκευασίας
1x UNO R3
1x 830 hole breadboard
1x Remote control
4x 7-seg LED
1x 7-seg LED
2x Ball tilt sensor
1x LM35 Temp Sensor
1x IR receiver
1x Flame sensor
1x LED Matrix 8×8
3x Photo Resistor
40x Pin headers
1x LED – RGB
5x LED – Blue
5x LED – Red
5x LED – Yellow
8x 220 Ω resistor
5x 10K Ω resistor
5x 1K Ω resistor
1x Stepper Motor
1x LCD display 2×16
1x Buzzer (active)
1x Buzzer (passive)
1x 5V Relay module
1x Joystick module
1x Stepper driver module
1x ADXL345 Three Axis Acceleration Module
1x HC-SR04 Ultrasonic Sensor
1x PIR Motion Sensor
1x Analog Gas Sensor
1x Servo Motor
1x 10K Ω Pot
1x IC 74HC595N 16-pin DIP
4x Large button switch
1x 6-cell AA Battery pack
1x USB cable
10x Dupont connector wires
30x Jumper Wires
1x Resistance color ring meter
Σημείωση
Το προϊόν είναι εξειδικευμένο και απαιτούνται τεχνικές γνώσεις.
Η εγγύηση δεν καλύπτει βλάβες από λάθος συνδεσμολογία.
