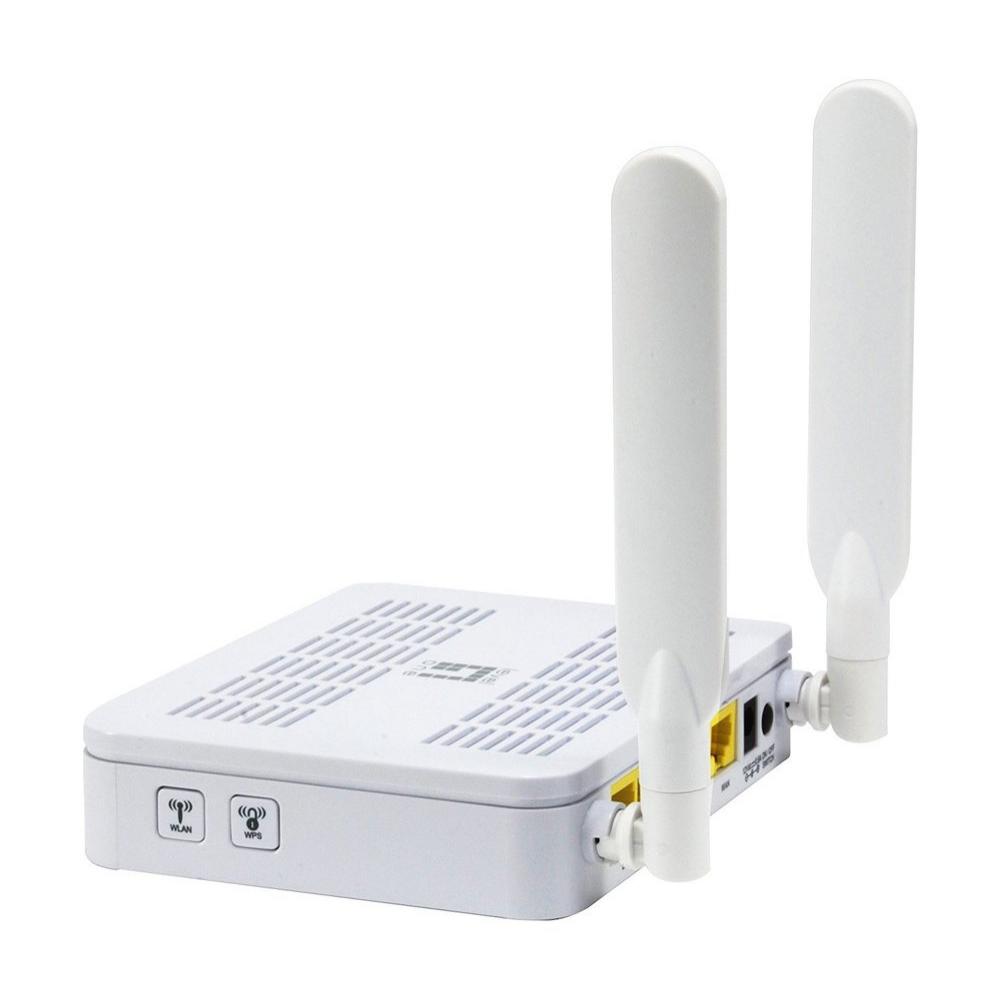

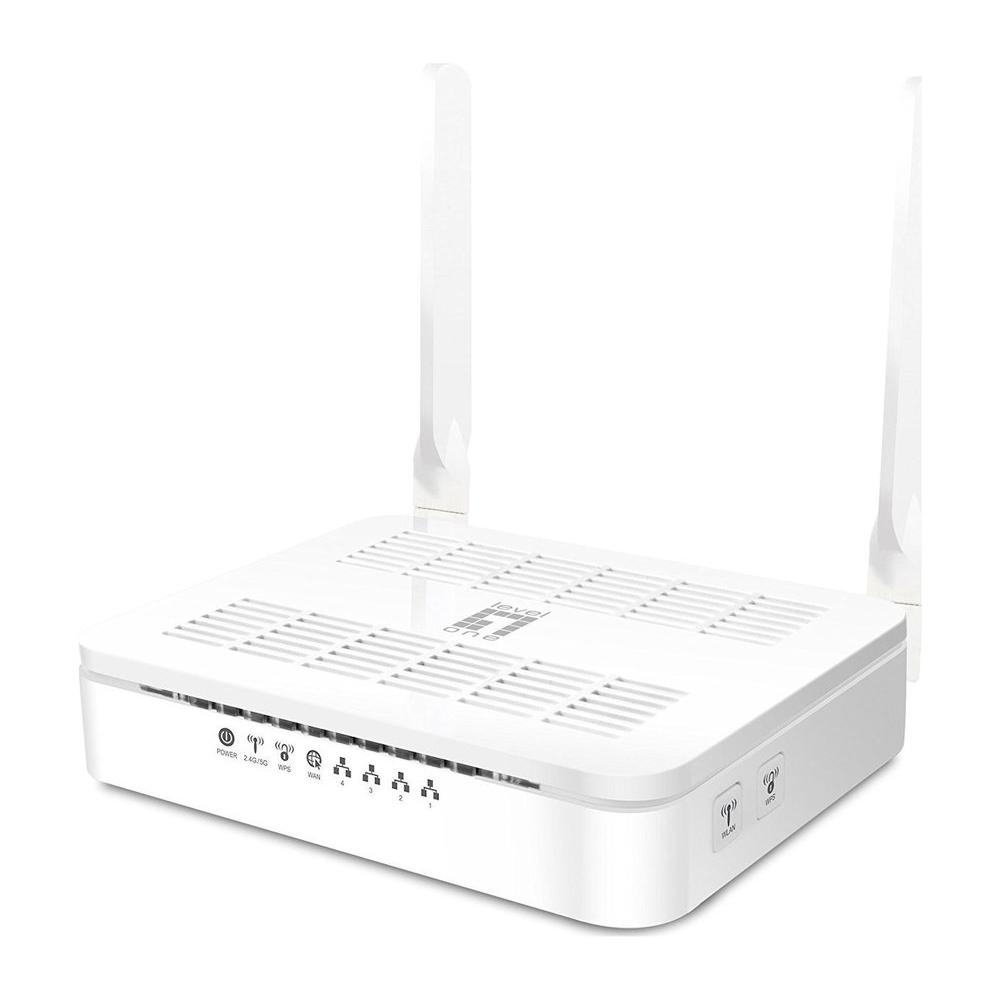

LEVELONE Wireless Gigabit Router AC1200 WGR-8031, 1200Mbps, Ver. 1.0

LEVELONE Wireless Gigabit Router AC1200 WGR-8031, 1200Mbps, Ver. 1.0

– Κοινή χρήση του ασύρματου δικτύου σας έως και 1200Mbps
– Συμβατό με τα πρότυπα ασύρματης δικτύωσης IEEE 802.11a/b/g/n/ac
– Dual band technology reduces interference, providing reliable connections
– Αυτόματη επιλογή καναλιού για ζώνη χαμηλής παρεμβολής
– Wireless signal on/off button
– Απλή ασύρματη συνδεσιμότητα και ασφάλεια με κουμπί WPS
– Client isolation allows strict control of access to wireless devices on the network
– Παρέχει έως και 8 SSID για διαχωρισμό κίνησης δικτύου και ενίσχυση ασφάλειας

Τεχνικά Χαρακτηριστικά:
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ,IEEE 802.11AC
Memory: 8MB Flash Rom, 64MB DDR2

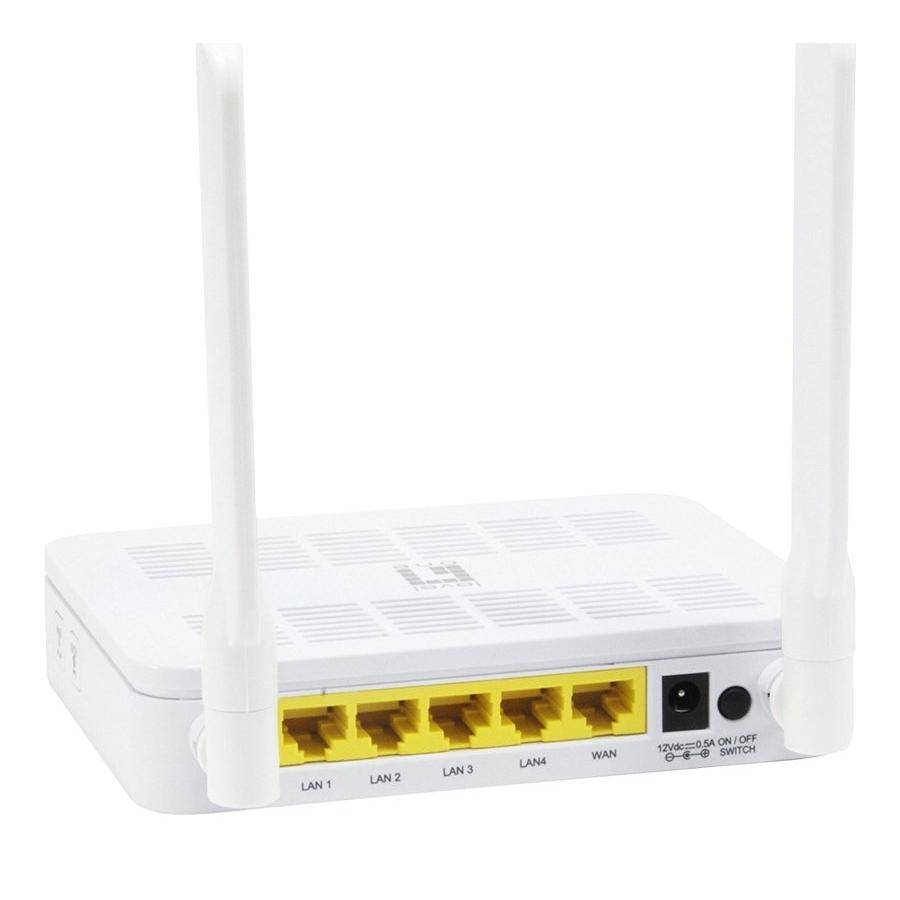

Port: 1x 10/100/1000Mbps Base-TX WAN Port, 4x 10/100/1000Mbps Base-TX LAN Port
Button/Knob: Power button, Reset button, WPS button, Wifi on/off button
Indicator: PWR, 2.4G WLAN, 5G WALN, WAN Link/Act, LAN Link/Act
Power Input: DC12V / 1A
Number of NAT Sessions: 11000
MAC Address Table: 20
Data Rate: LAN/WAN: 10/100/1000Mbps
Operating Mode: AP, Repeater, Bridge
Encryption: WEP 64/128-bit Web share key encryption WPA,WPA2,802.1x, WPA, WPA2-PSK TKIP/AES encryption, WPA-PSK802.1x
Receive Sensitivity(dBm):
2.4GHz:
802.11n (20MHZ_MSC0): Range(-85) dBm
802.11n (40MHZ_MCS0): Range (-82) dBm
802.11g 6Mbps: Range (-85) dBm
802.11g 54Mbps: Range (-68) dBm
802.11b 1Mbps: Range (-83) dBm
802.11b 11Mbps: Range (-76) dBm
5GHz:
802.11a 6Mbps: Range (-85) dBm
802.11a 54Mbps: Range (-65) dBm
802.11n (20MHZ_MCS0): Range (-82) dBm
802.11n (40MHZ_MCS0): Range (-79) dBm
802.11ac (20MHZ_MCS0): Range (-82) dBm
802.11ac (40MHZ_MCS0): Range (-79) dBm
802.11ac (80MHZ_MCS0): Range (-76) dBm
Wireless Channels: Ch.1 ~ 11 USA, Ch.1 ~ 13 EU, Ch.36~48, Ch. 52~ 165(FW can implement but need to apply DFS certificate)
EIRP(dBm):
(Controllable for different country regulations)
802.11ac: up to 15dBm ± 1dBm
802.11n: up to 17dBm ± 1dBm
802.11g: up to 20dBm ± 1dBm
802.11b: up to 20dBm ± 1dBm
Antenna: 2x 5dBi Dual Band external Antenna
Frequency Band:
2.4 ~ 2.4835 GHz
5.15 ~ 5.25 GHz
5.25 ~ 5.825 GHz
Data Transfer Rate:
802.11ac : 866Mbps
802.11n: 300 Mbps
802.11g: 54 Mbps
802.11b: 11 Mbps
Security: NAT Firewall
Virtual Server: DMZ, SSID Broadcast On/Off, Tag VLAN
Management: Web-Based GUI Configuration
QoS: IEEE 802.11e Wi-Fi Multimedia (WMM)
Operating Distance: φ50m
Dimensions: 140x106x30 mm
Weight (g): 235g

Περιεχόμενα συσκευασίας
1x WGR-8031
1x Quick Installation Guide
1x RJ45 Network Cable
