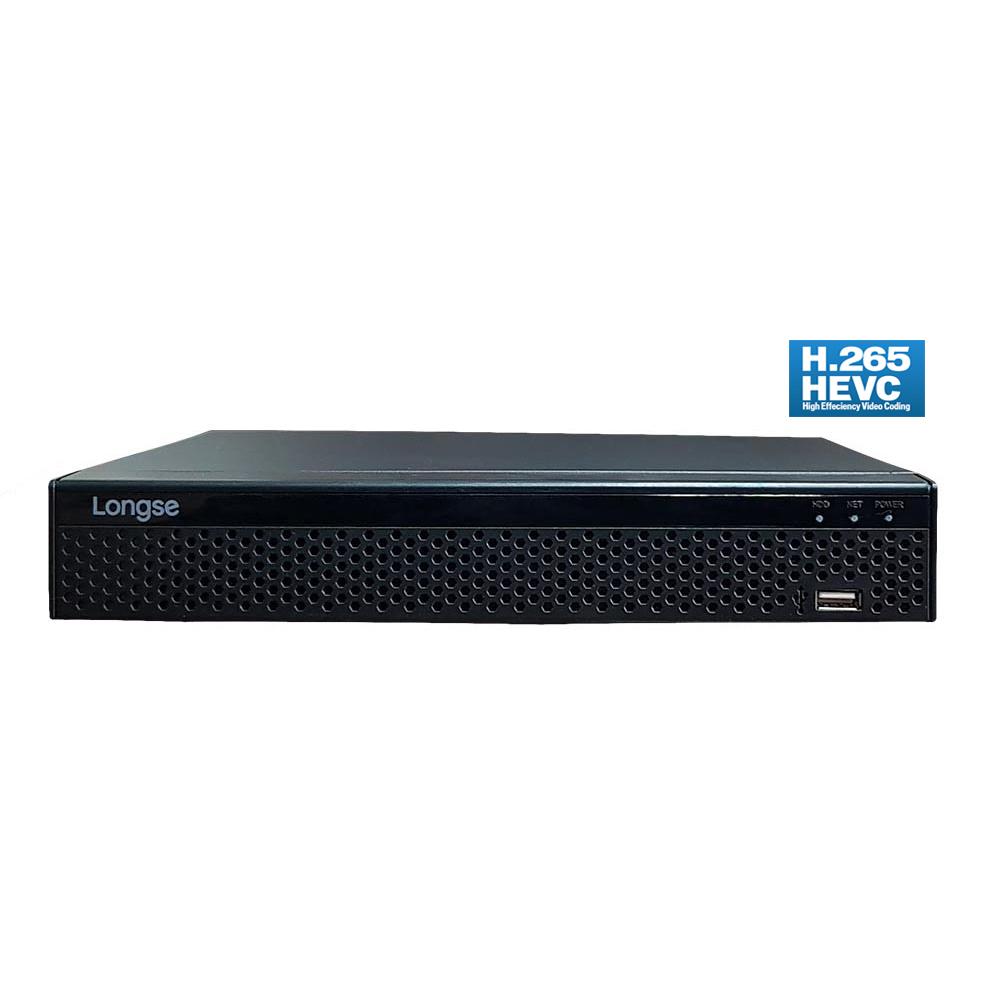

LONGSE XVR ΑΙ Υβριδικό καταγραφικό, H265+HD, DVR, 4+2 IP, 4-16 κανάλια
Τεχνική Υποστήριξη:
Η Data Media παρέχει online τεχνική υποστήριξη για το συγκεκριμένο προϊόν, στο τηλέφωνο 2394020204 (εσωτερικό 331)
Η σειρά Longse AI(Τεχνητή νοημοσύνη) με συνδιασμο AI IP Κάμερας αποτελούν ένα ολοκληρωμένο σύστημα παρακολούθησης, το οποίο θα σας επιτρέψει να γνωρίσετε νέες ευφυείς λειτουργίες παρακολούθησης AI όπως αναγνώριση προσώπου, ανίχνευση εισβολών, ανίχνευση περιπλάνησης και ανίχνευση ανθρώπων. Υποστιρήζει 4 κανάλια HD-TVI, CVI, AHD και Analogue και 2 IP ταυτόχρονα ή 4 έως 16 κανάλια IP.
Συμβατές εφαρμογές:
Android
https://play.google.com/store/apps/details?id=com.gzch.lsplat.bitdog&hl=el
IOS
https://apps.apple.com/us/app/bitvision/id1419463554
PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10
WEB Browser
www.bitvision.app
– Υβριδικό δικτυακό XVR AI καταγραφικό 4 CH + 2 IP H.265+
– Συμβατό με τις τεχνολογίες: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
– Ελληνικό μενού
– Διαθέτει 2x εισόδους Audio in , 1x έξοδο Audio out
– Εφαρμογή για Android και IOS
– Υποστηρίζει DDNS/CLOUD/P2P
– Υποστηρίζει HDD έως 6ΤΒ
– Αναπαραγωγή σε εξόδους HDMI(1080p), VGA(1080p), CVBS
– Υποστηρίζει τεχνολογία AI(Τεχνητή νοημοσύνη)
Τεχνικά Χαρακτηριστικά:
Main Processor: HI3520DV400
Operating System: Embedded LINUX
VIDEO
Normal Mode: Default: 4x (AHD/TVI/CVI:8M, TVI/AHD: 5M, AHD/TVI/CVI: 4M, AHD/TVI: 3M, AHD/TVI/CVI: 1080P/720P, Analog: 960H)+2x network(MAX 5MP)
Analog+Network: 2x Analog(AHD/TVI/CVI:8M, TVI/AHD: 5M, AHD/TVI/CVI: 4M, AHD/TVI: 3M, AHD/TVI/CVI: 1080P/720P, Analog: 960H)+7x network(MAX 5MP)
Lite Mode: Default: 4x (TVI/AHD: 5M @12fps, AHD/TVI/CVI: 4M @15fps, AHD/TVI: 3M, AHD/TVI/CVI: 1080P/720P, Analog: 960H)+2x network(MAX 5MP)
Analog+Network: 2x Analog(TVI/AHD: 5M, AHD/TVI/CVI: 4M, AHD/TVI: 3M, AHD/TVI/CVI: 1080P/720P, Analog: 960H)+7x network(MAX 5MP)
Network: 16x 5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?48M)

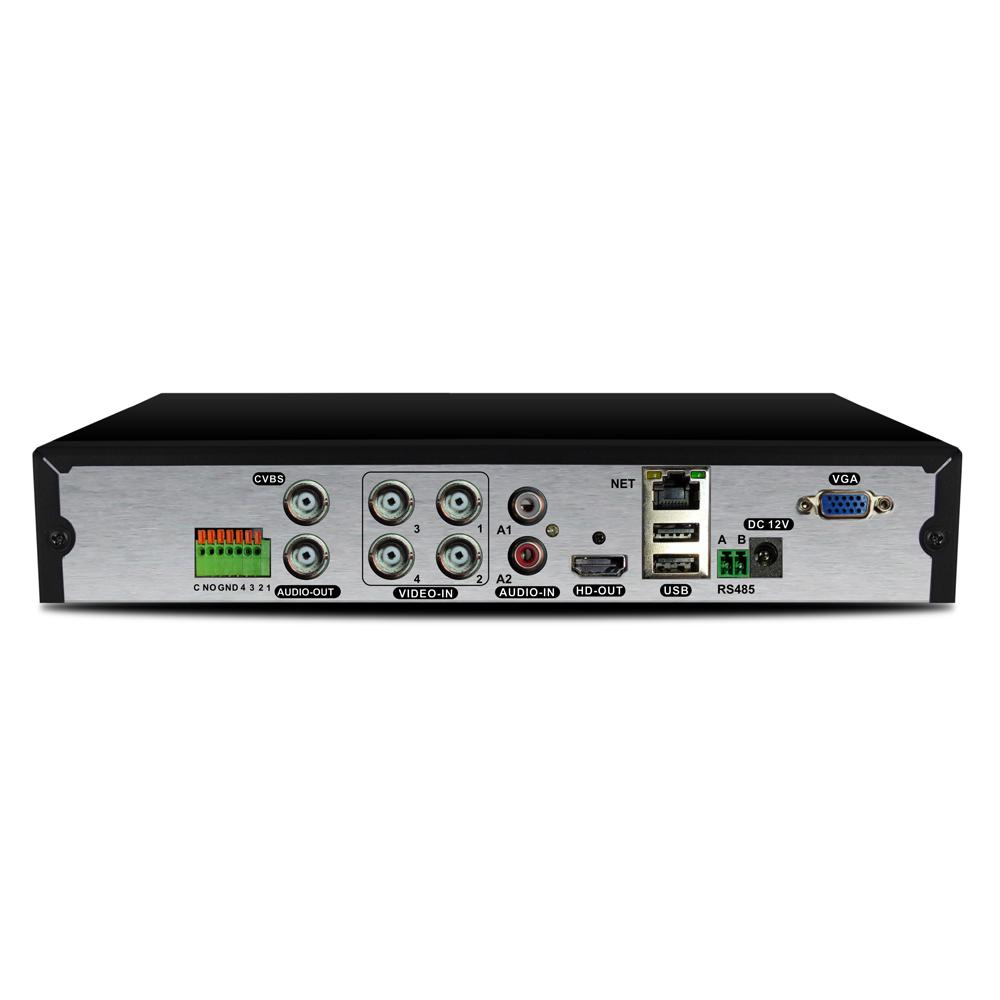

Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1x HD, 1x VGA, 1x CVBS
Audio Input/Output: 2x Channel RCA/1x Channel RCA
Alarm Sensor Input: 4 CH
Sensor Output: 1 CH
Motion Detection: 4 Channel(max 16 Channel in pure network mode)
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
PTZ Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
AI Function Face Comparison: 1 channel video stream face Comparison(1 face databases with 10 face images)
Display
VGA Resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
HD Output Resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
Display Split: 16 Channel/9 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression: H.265/H.265+/H.264/H.264+
Audio Compression: G.711u/G.711a
Resolution: 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),3MP_Lite(1024×1536),1080P(1920×1080),720P(1280×720),960H(P:960?576/N:960×480)
Record Mode: ManualTimerMotion DetectionAI AlarmAlarm Input
Playback & Backup
Decode Capability: 2CH 1080P @30fps
Sync Playback: Pure Analog: 4CH 5M @6fps, 4CH 8M_Lite @8fps, 4CH 4M @8fps, 4CH 3M @9fps, 4CH 1080p @15fps, 4CH 1080N @25fps
Mix Mode: 1CH 5M @30fps, 1CH 4M @30fps, 1CH 3M @30fps, 2CH 1080P @30fps, 4CH 1080p @15fps
Pure IPC: 1CH 5MP @30fps, 1CH 4MP @30fps, 1CH 3M @30fps, 4CH 1080P @15fps, 2CH 1080P @30fps, 4CH 960P @30fps, 4CH 720P @30fps
Remote Playback: 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone Playback: 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP
Network
Interface: 1x RJ45 10M/100M Adaptive Ethernet Interface
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF/D1(1-30fps)
Smart Phone: iPhone, ipad, Android ,Android pad
HDD interface: 1x SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
UTC Control: YES
USB Interface: 2x USB 2.0
Power consumption: DC 12V/2A ?6W (Without Hard Disk)
Working Environment: -10~55/10~90%
Dimension: 260x215x43(mm)
