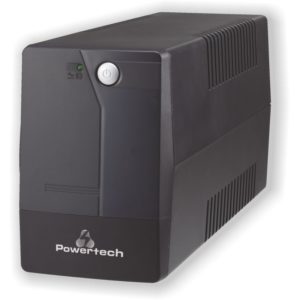

POWERTECH UPS Line Interactive PT-1050, 1050VA/630W
Model : PT-1050
Capacity 1050 VA / 630 W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
Frequency Range (Batt. Mode) ± 10%
Waveform (Batt. Mode) 50 Hz or 60 Hz ± 1 Hz
Transfer Time Typical 2-8 ms
AC Voltage Regulation Simulated Sine Wave
BATTERY
Battery Type & Number 12 V/9 Ah x 1
Typical Recharge Time 4 hours up to 90% capacity
PROTECTION
Full Protection Overload, discharge, and overcharge protection
INDICATORS
AC Mode Green lighting
Battery Mode Green Flashing
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
PHYSICAL
Dimension, D x W x H (mm) 279 x101 x142
Net Weight (kgs) 4.2 4.9
ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
