UBIQUITI Access point PBE-M5-300-ISO, outdoor, 5GHz, 2x22dBi, AirMAX ISO
Τεχνικά Χαρακτηριστικά:
Processor Specs: Atheros MIPS 74Kc, 560MHz
Memory: 64MB DDR2, 8 MB Flash
Networking Interface: (1) 10/100 Ethernet Port
Output power: 24dBm
Power Supply: 24V, 0.5A PoE
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 20-26VDC
Max. Power Consumption: 6W
Gain: 22 dBi
Operating Frequency: 5170 – 5875 MHz
Wind Loading: 210N @ 200 km/h
Wind Survivability: 200km/h (125 mph)
LEDs: 1x Power, 1x LAN, 4x WLAN
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes: 5/8/10/20/30/40 MHz
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount Kit Included
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 70° C
Operating Humidity: 5 to 95% Non-Condensing
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Gain: 22 dBi
Max. VSWR: 1.5:1
Built-In Mechanical Downtilt: ± 20°
Dimensions: 364 x 364 x 276 mm
Weight: 2.55 kg

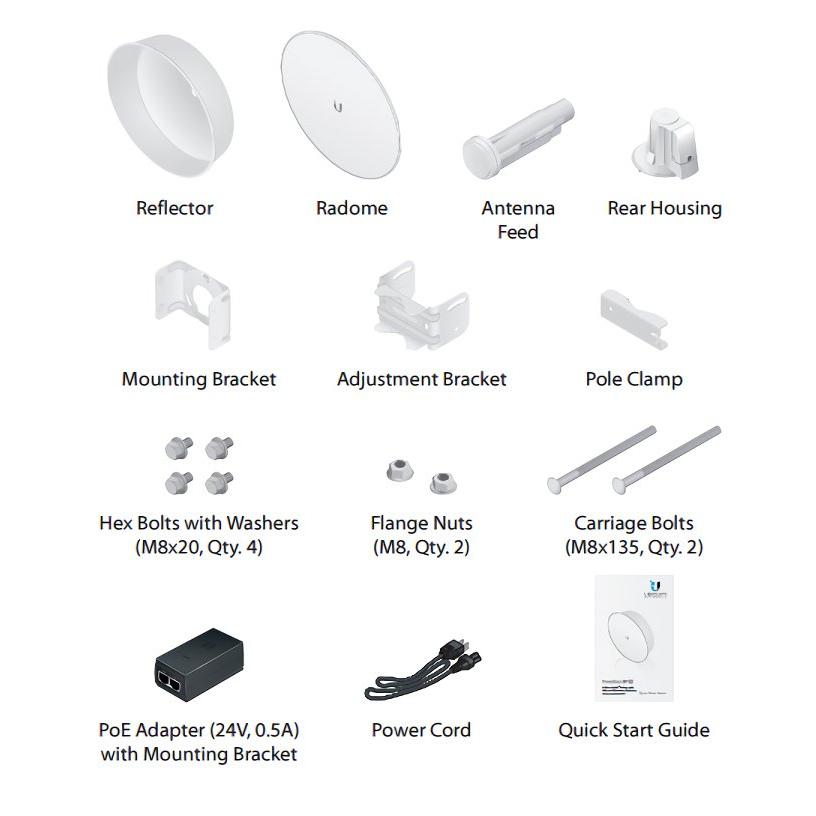

Περιεχόμενα συσκευασίας
Reflector
Radome
Antenna feed
Rear housing
Mounting bracket
Adjustment Bracket
Pole Clamp
4x Hex bolts with washers M8x20
2x Flange nuts M8x20
2x Carriage bolts M8x135
PoE adapter (24V, 0.5A) with mounting bracket
Power cord
Quick start guide
