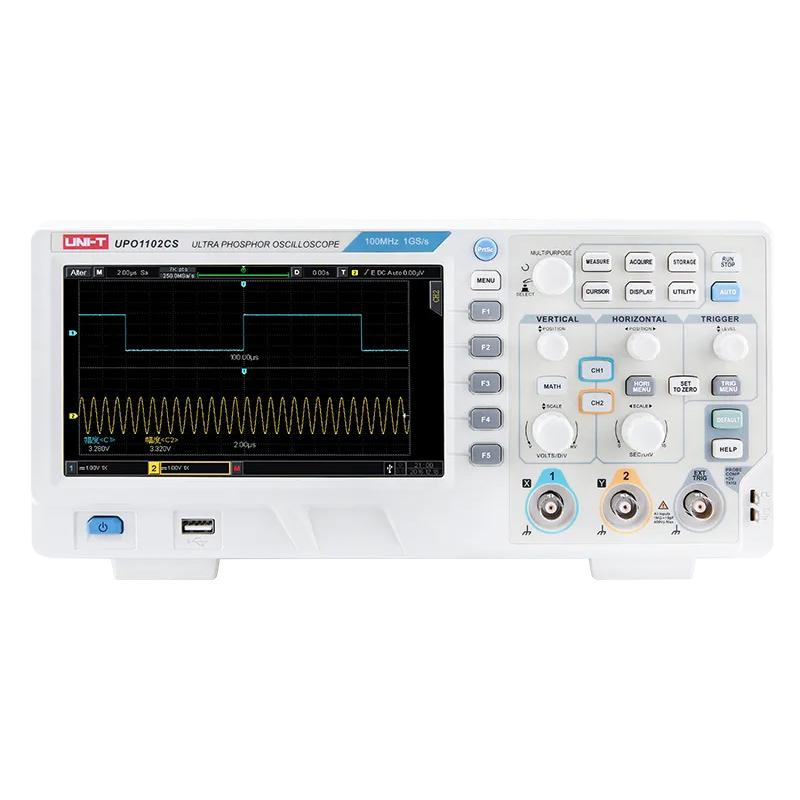

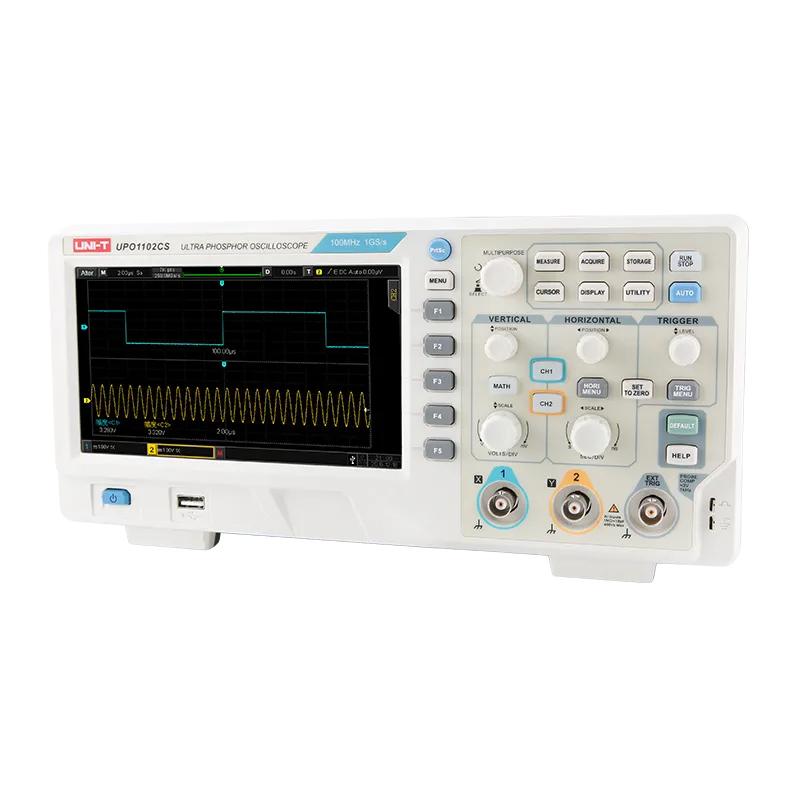

UNI-T ψηφιακός παλμογράφος πάγκου UPO1102CS, 2 καναλιών, 100MHz

UNI-T ψηφιακός παλμογράφος πάγκου UPO1102CS, 2 καναλιών, 100MHz

Υψηλής απόδοσης ψηφιακός παλμογράφος πάγκου Uni-T, 2 αναλογικών καναλιών με εύρος συχνότητας 100MHz.

-Analog channel bandwidth: 100MHz.
-Number of analog channels: 2.
-Storage depth of each channel: 56Mpts
-Sampling rate: 1GSa/s (non-interleaving: independent sampling per channel).
-Waveform capture rate: 500,000wfms/s.
-Hardware real-time waveform uninterrupted recording of 100000 waveforms.
-Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display.
-Support RS232, I2C, SPI, CAN and LIN trigger.
-Innovative RS232, I2C, SPI, CAN and LIN hardware decoding.
-Vertical scale: 1 mV/div-20 V/div.
-Low background noise: <100μVrms.
-1M points enhanced FFT function. Support frequency setting, waterfall diagram, detection setting and marker measurement etc.
-36 kinds of waveform parameters can be automatically measured.
-Rich trigger functions (edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge and pattern trigger).
-Multi-Scopes support dual-channel independent trigger fluorescence display.
-Multi-channel independent 7-bit hardware frequency counter.
-DVM supports dual-channel independent AC and DC true RMS measurement.
-Waveform arithmetic functions (FFT, +, -, ?, ?, digital filtering, logic operations, and advanced operations).

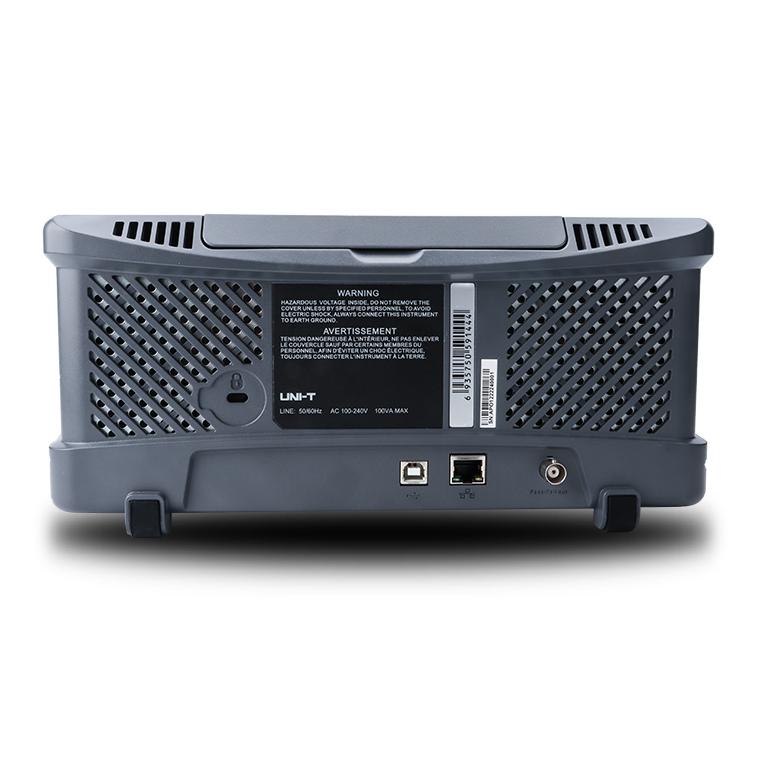

-Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out Pass/Fail).
-Support SCPI programmable instrument standard command.
-Support WEB access and control.
-7" WVGA (800 x 480) TFT LCD.

Τεχνικά χαρακτηριστικά
Bandwidth: 100MHz
Analog channels: 2
Real-time sample rate: 1 GSa/s
Max. memory depth: 56 Mpts per channel
Rise time: </= 3.5ns
Capture rate: 500.000 wfms/s
Waveform record: 100.000 frames
Product size: 31 x 13 x 15cm

Συσκευασία προϊόντος: Εργοστασιακή συσκευασία σε τυπωμένο χαρτοκιβώτιο

Περιεχόμενα συσκευασίας
Παλμογράφος πάγκου
Καλώδιο τροφοδοσίας
Καλώδιο USB
Passive probe
Εγχειρίδιο χρήσης
