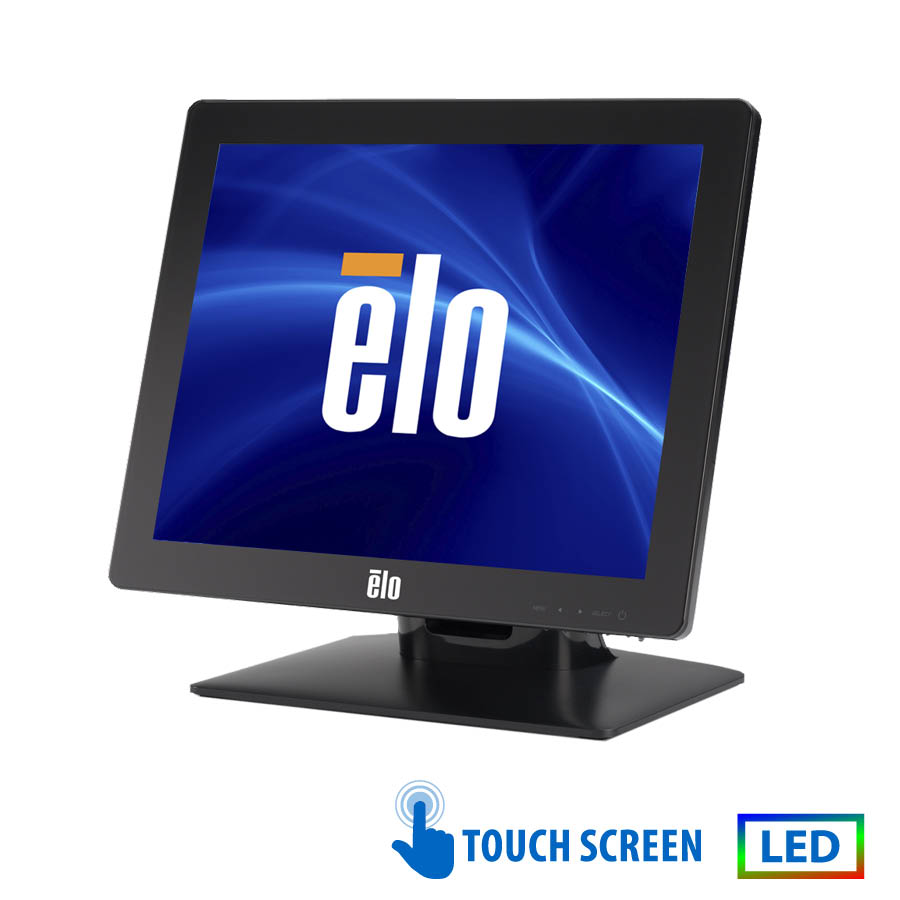

Used Monitor (A-) Touchscreen ELO 1517L LED 15″ Black/ VGA/ USB/ RS232
219.00€
Μη διαθέσιμο
Μικρές Γρατζουνιές!
Άριστη λειτουργία με πολύ καλή εξωτερική εμφάνιση.
Xωρίς ραγίσματα ή καμμένα Pixel στο Panel, ενδεχομένως ελαφρά φθορά χρήσης.
Στη συσκευασία συμπεριλαμβάνεται καλώδιο τροφοδοσίας.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Diagonal Size 15 diagonal, Active matrix TFT LCD (LED)
Monitor Thickness 1.7″ / 43mm
Aspect Ratio 4:3
Active Area (mm) 8.98″ x 11.97″ / 228.10mm x 304.13mm
Resolution 1024×768 @ 60Hz, 75Hz
Other Supported Resolutions
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
Viewing Angle Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colors 16.2 million
Brightness (typical)
LCD panel: 300 nits
AccuTouch: 240 nits
IntelliTouch: 270 nits
IntelliTouch ZB: 270 nits
Response Time-total (typical) 23 msec
Contrast Ratio 800:1
Touch Interface Serial (RS232) and USB
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Lockouts: OSD, Power
Input Video Format Analog VGA on Female DB-15 connector
Input Video Frequency Horizontal: 31.5-60 kHz/Vertical: 56-75 Hz
Power
Monitor AC input power connector: IEC 60320 C6
Monitor AC input voltage specifications: 100-240VAC, 50/60Hz
Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor DC input voltage specifications: 12VDC +/- 5%
Note: Optional AC-DC power adapter sold for this monitor:
AC input connector: IEC 60320 C14
AC input voltage specification: 100-240VAC, 50/60Hz
Power Consumption (Typical)
Monitor Only
ON: 10.5W
SLEEP: 1.2W
OFF: 0.4W
Monitor Dimensions (with Stand) 14.1″ x 7.8″ x 12.5″ / 358mm x 197mm x 319mm
Weight (Unpackaged) 9.48 lbs / 4.3 kg
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature 20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF 50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Capped through-mount holes
*Η φωτογραφία είναι ενδεικτική και μπορεί να διαφέρει από το τελικό προϊόν.
