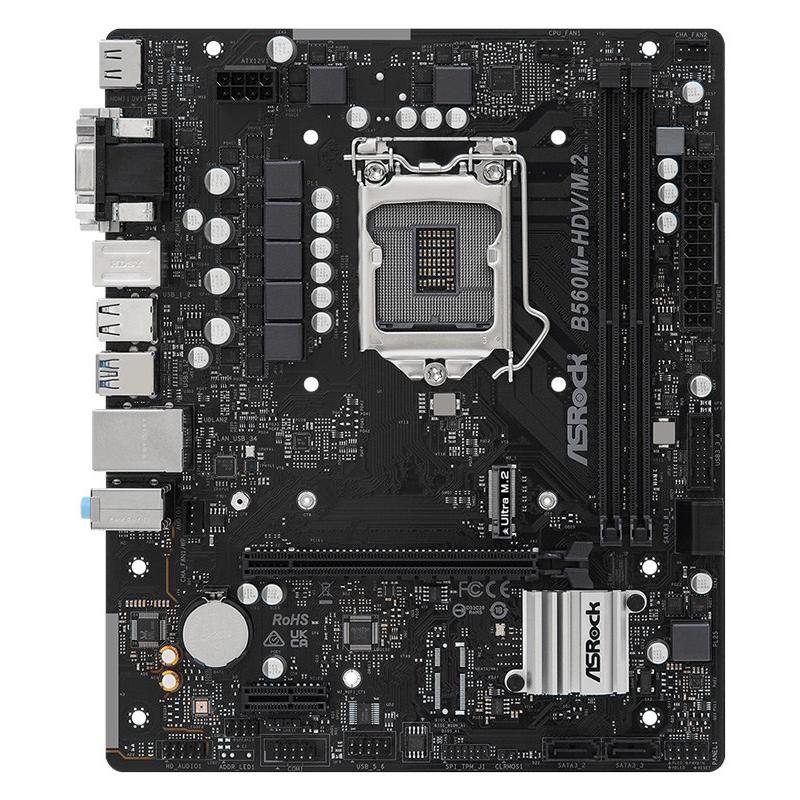

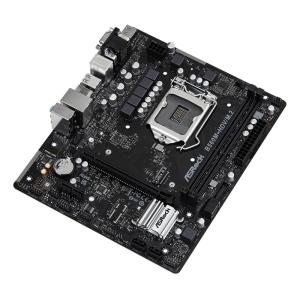

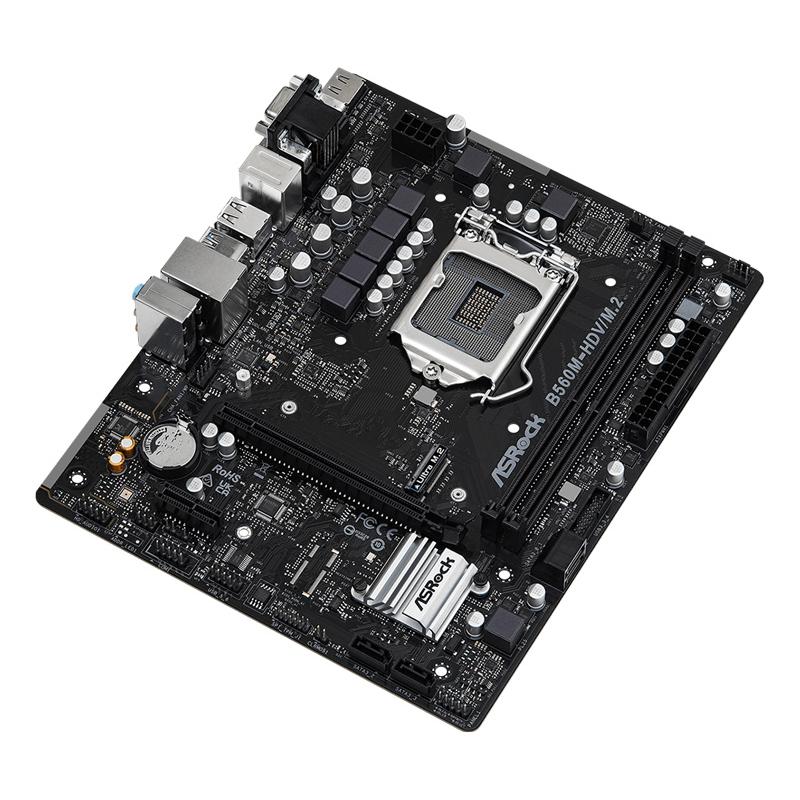

ASROCK μητρική B560M-HDV/M.2, 2x DDR4, s1200, USB 3.2, mATX

ASROCK μητρική B560M-HDV/M.2, 2x DDR4, s1200, USB 3.2, mATX

Η B560M-HDV/M.2 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset B560 της Intel.
Διαθέτει τρεις εξόδους γραφικών: D-Sub, DVI-D και HDMI.

-Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
-Supports DDR4 4000+ MHz (OC)
-1x PCIe 4.0 x16, 1 x PCIe 3.0 x1
-Graphics Output Options: HDMI, DVI-D, D-Sub
-7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-4x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
-4x USB 3.2 Gen1 (2 x Rear, 2 x Front),
-6x USB 2.0 (4 x Rear, 2 x Front)
-Intel® Gigabit LAN

Τεχνικά Χαρακτηριστικά
CPU: Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
Chipset: Intel B560
Memory: 2x DDR4 DIMM Slots
Max. capacity of system memory: 64GB
BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI, ACPI 6.0 Compliant wake up events, SMBIOS 2.7, CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Graphics: D-Sub, DVI-D and HDMI
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Surge Protection
LAN: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel® I219V, Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE
Slots: 11th Gen Intel Core Processors: 1x PCI Express 4.0 x16 Slot, 10th Gen Intel Core Processors: 1x PCI Express 3.0 x16 Slot, 1x PCI Express 3.0 x1 Slot
Storage: 4x SATA3 6.0 Gb/s, 1x Ultra M.2 Socket (M2_1)
Form Factor: Micro ATX Form Factor: 22.6 cm x 18.8 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Connector:
1x COM Port Header
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)
1x Chassis Fan Connector (4-pin)
1x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

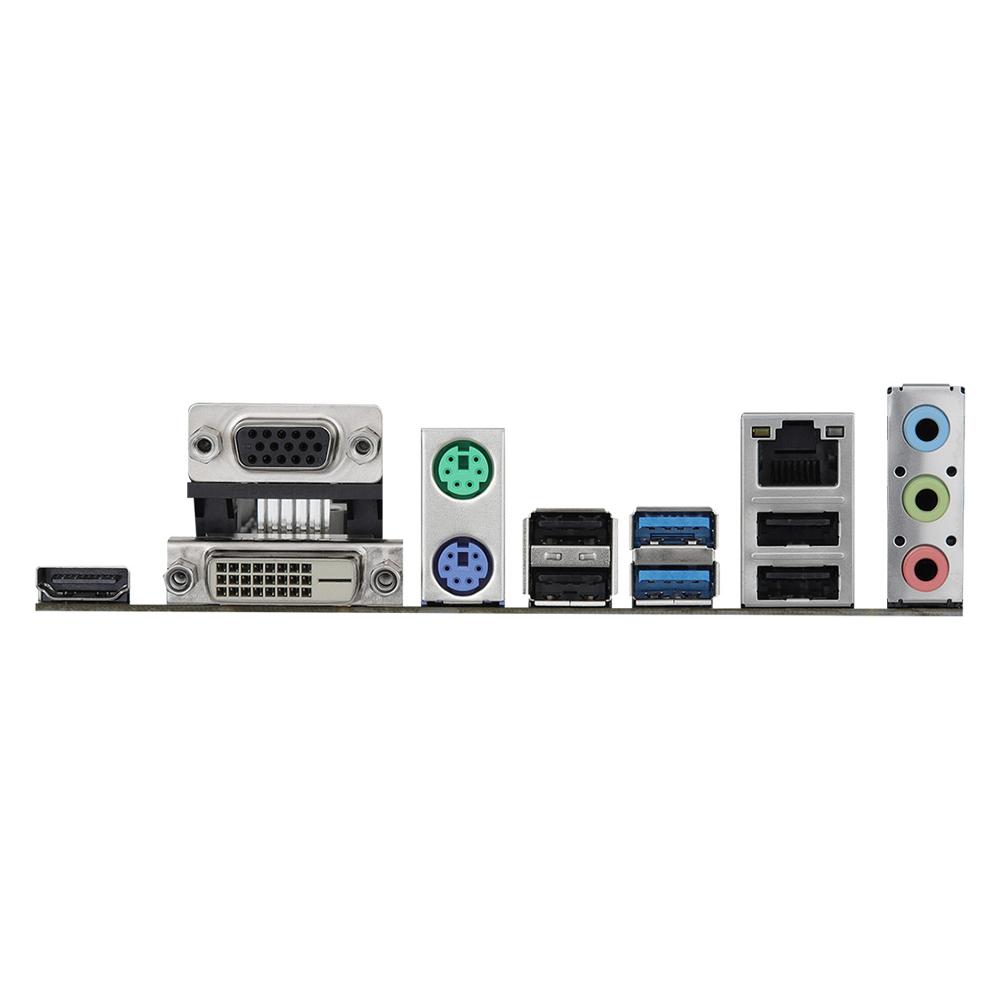

Rear Panel I/O:
1x PS/2 Keyboard Port
1x PS/2 Mouse Port
1x D-Sub Port
1x DVI-D Port
1x HDMI Port
4x USB 2.0 Ports (Supports ESD Protection)
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

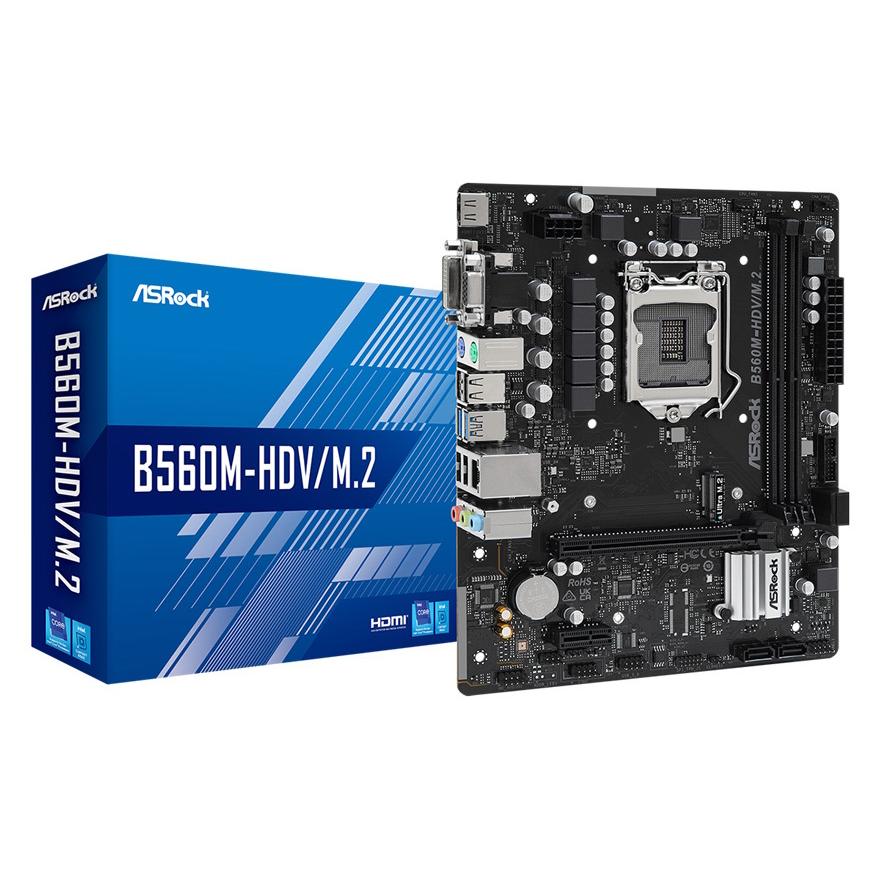

Περιεχόμενα συσκευασίας
μητρική B560M-HDV/M.2
User Manual
Support CD
I/O Shield
2 x SATA Data Cables
Screw for M.2 Socket
