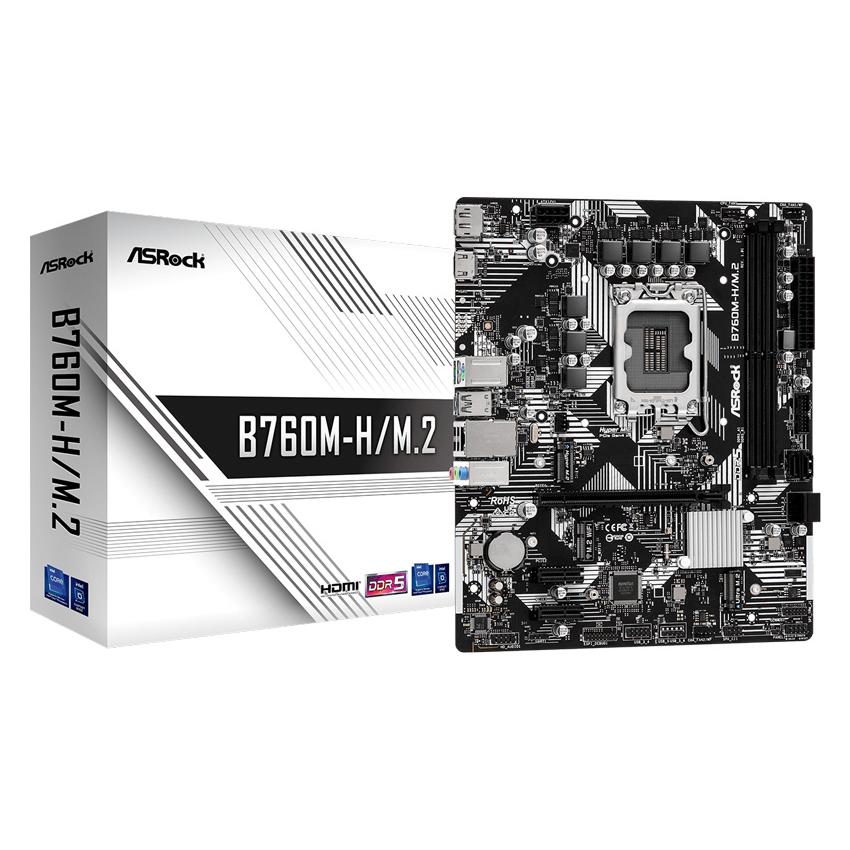

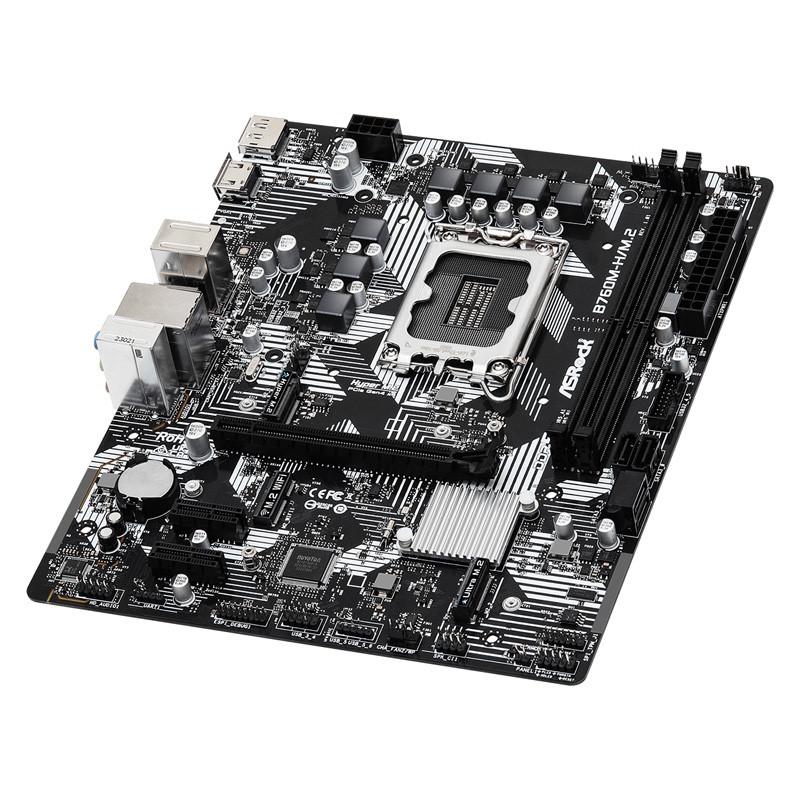

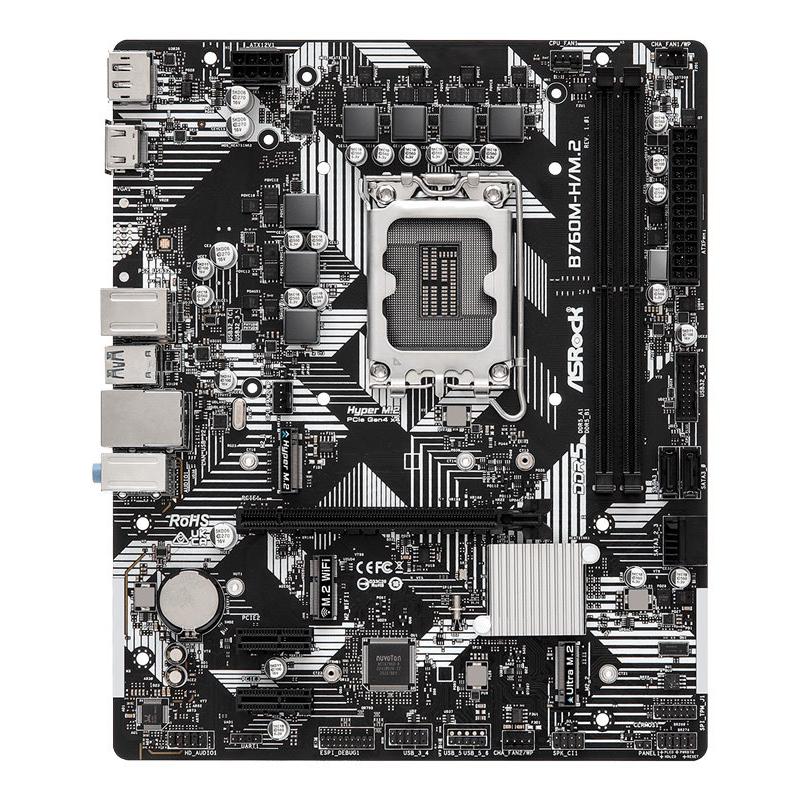

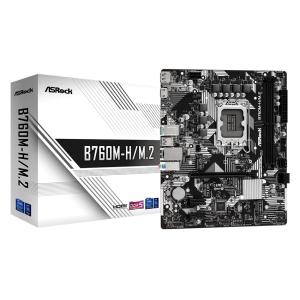

ASROCK μητρική B760M-H/M.2, 2x DDR5, s1700, USB 3.2, mATX

ASROCK μητρική B760M-H/M.2, 2x DDR5, s1700, USB 3.2, mATX

Η B760M-H/M.2 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset B760 της Intel.
Διαθέτει δυο εξόδους γραφικών: HDMI και DisplayPort.

-Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
-5+1+1 Power Phase
-Supports DDR5 7200MHz (OC)
-1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x M.2 Key E for WiFi
-Graphics Output Options: HDMI, DisplayPort
-Realtek ALC897 7.1 CH HD Audio Codec
-4x SATA3, 1x Hyper M.2 (PCIe Gen4x4),
-1x Ultra M.2 (PCIe Gen3x4)
-1x USB 3.2 Gen1 Type-C (Rear),
-5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
-5x USB 2.0 (2 Rear, 3 Front)
-Realtek Gigabit LAN
-Supports ASRock Auto Driver Installer

Τεχνικά Χαρακτηριστικά
CPU: Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
Chipset: Intel B760
Memory: 2x DDR5 DIMM Slots, DDR5 non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 96GB
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Graphics: 1x HDMI 2.1, 1x DisplayPort 1.4
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN: Gigabit LAN 10/100/1000 Mb/s, Realtek 8111H
CPU Slots: 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset Slots: 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE3), 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
CPU Storage: 1x Hyper M.2 Socket (M2_1, Key M)
Chipset Storage: 1x Ultra M.2 Socket (M2_2, Key M), 4x SATA3 6.0 Gb/s Connectors
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB:
1x USB 3.2 Gen1 Type-C (Rear)
5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
5x USB 2.0 (2 Rear, 3 Front)
Form Factor: Micro ATX Form Factor: 24.4 cm x 20.1 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Connector:
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)*
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
2x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
2x USB 2.0 Headers (Support 3 USB 2.0 ports)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

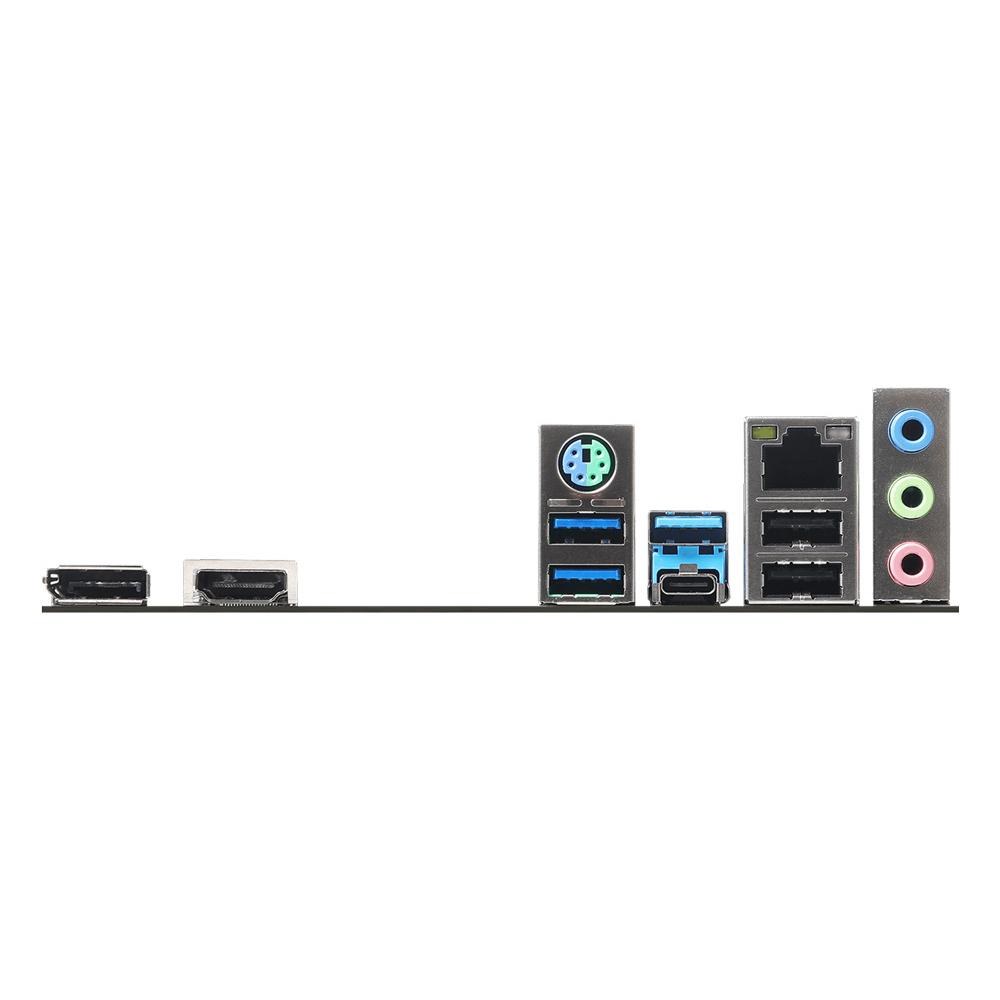

Rear Panel I/O:
2x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
1x DisplayPort 1.4
1x USB 3.2 Gen1 Type-C Port
3x USB 3.2 Gen1 Type-A Ports
2x USB 2.0 Ports
1x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Περιεχόμενα συσκευασίας
μητρική B760M-H/M.2
User Manual
I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
